Olympus - 100M - Deadbolt Door Lock - N Series National - MRI Series - Long Bolt - Non Handed - 26D - Satin Chrome - 15/16" Cylinder - Optional Keying - Optional Barrel Length - Grade 1
Olympus - 100M - Deadbolt Door Lock - N Series National - MRI Series - Long Bolt - Non Handed - 26D - Satin Chrome - 15/16" Cylinder - Optional Keying - Optional Barrel Length - Grade 1
Regular price
$15.29 USD
Regular price
$61.16 USD
Sale price
$15.29 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
OLY-100M-26DXXXX (Long Bolt)

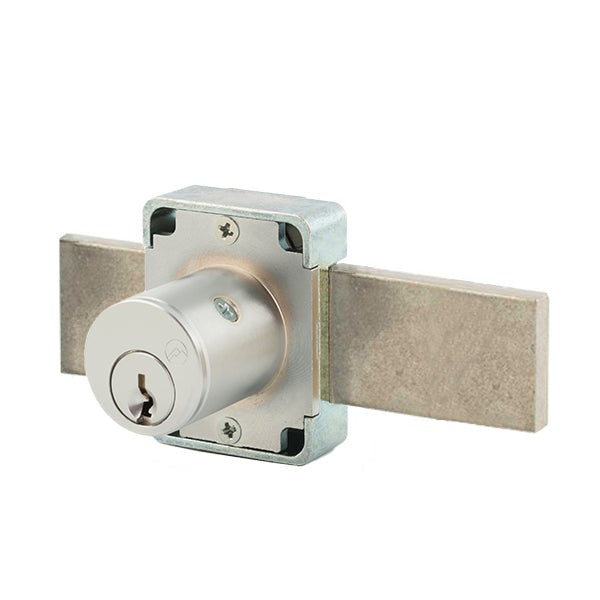

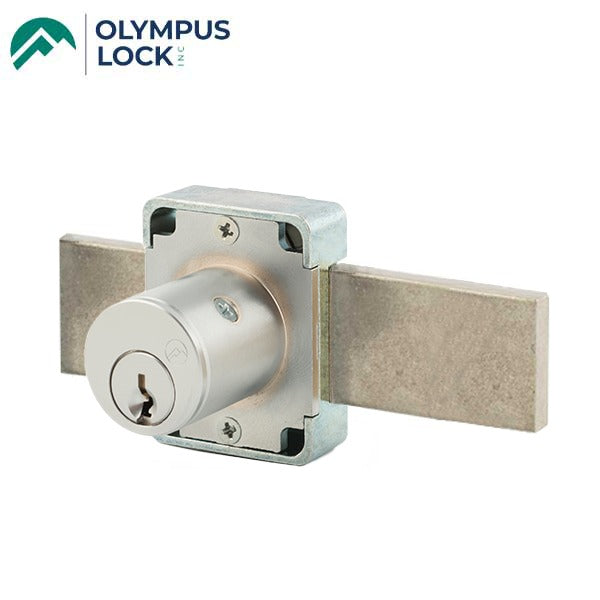

N Series National Keyway Cabinet Drawer Deadbolt Lock.
Easily rekeyable via rear set screws.
Features:
- All non-ferrous (non-magnetic) materials and parts
- Suitable for use in Magnetic Resonance Imaging suites where all components must have non-magnetic properties
- Solid brass pin tumbler cylinder drilled for 5 pins
SPECIFICATIONS
| Function | Deadbolt Door Lock |
| Cylinder | National N Series (equivalent to National D4291 4-pin ) Keyway w/ 2 keys per lock |
| Cylinder Length | 15/16" |
| Barrel Diameter |
7/8" |
| Functions | Key removable in locked or unlocked position |
| Handing | Right Hand |
| Body | Zinc die cast |
| Finish | 26D - Satin Chrome |
| Includes |
- 2 keys - 56-1 bar strike -lock mounting screws |
| Certifications | Passed ANSI/BHMA A156.11 Grade 1 performance requirements |
