Olympus

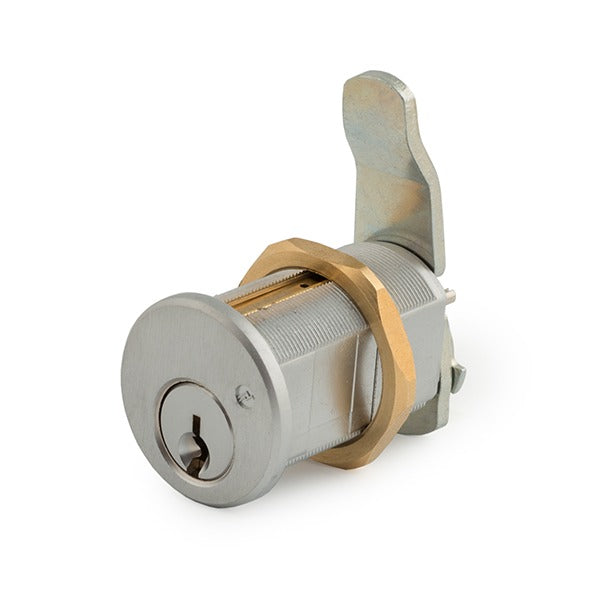

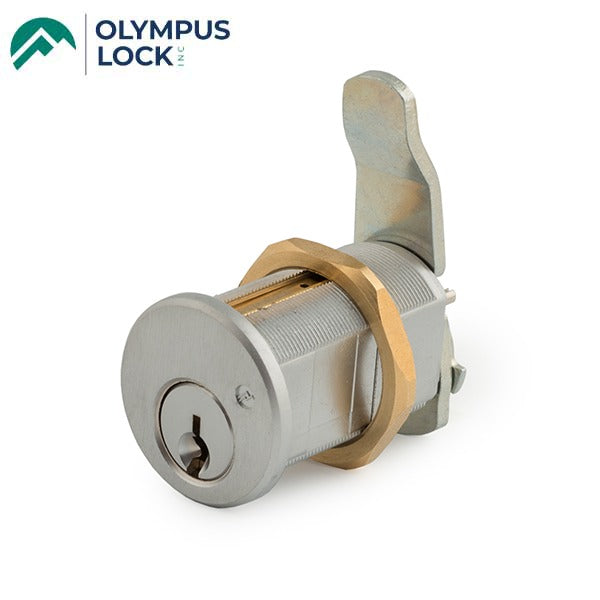

Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Satin Chrome - Grade 1
Olympus - 820S - S Series: Schlage C Keyway Cam Lock - 7/8" Cylinder Diameter - Satin Chrome - Grade 1
Regular price
$16.60 USD
Regular price
$66.41 USD
Sale price
$16.60 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
OLY-820S-26DXXXX
LC Series: Less Cylinder Cam Lock.
Olympus Lock manufactures institutional-grade cabinet locks that reflect the Company’s culture of design and ingenuity. The company pioneered rekeyable cabinet locks and holds numerous North American patents speaking to those inventions. By incorporating feedback from locksmiths at airports, casinos, schools, and hospitals, Olympus engineered its products to be both durable and easy to work with, making it the preferred choice of institutional locksmiths. The Company has been around for over three decades, is still family owned and operated, and boasts industry leading ship times.
Features:
- Cam lock
- Easily rekeyable via rear set screws
- Will accept other manufacturer's Schlage compatible deadbolt cylinders
- ANSI/BHMA: E07261
- Cylinder diameter: 1-1/8
- Across flats: 7/8"
- Mounting cutout: 1-5/32"
- Max. material thickness: 1-3/8"
Specifications:
| Rekeyable | Easily rekeyable via set screw on back of lock body |
| Cylinder diameter | 1-1/8" |
| Across flats |
7/8" |
| Max. material thickness | 1-3/8" |
| Min. material thickness | 0.08" |
| Body | Zinc die cast |
| Functions | Includes parts for key-retaining or nonkey-retaining |
| Finish | Satin Chrome |
| Cylinder | Solid brass, pin tumbler |
| Keying | - 101 Keyed Alike - 102 Keyed Alike - O-Bit Keyed Alike - Keyed Different |
| Includes | - 720-PL3 anti-rotation plate - 720-3-1 short inverted cam - 720-3-2 long vertical cam - 720-CDLM lost motion cam shifter - 720-CDDM key retaining door cam shifter - 720-KR key retaining drawer cam shifter |
Downloads:
