PBB - 4B81652 - Architectural Hinge - Full Mortise - Heavy Weight - Ball Bearing - 4-1/2" x 4-1/2" - Optional Finish - Optional NRP

PBB - 4B81652 - Architectural Hinge - Full Mortise - Heavy Weight - Ball Bearing - 4-1/2" x 4-1/2" - Optional Finish - Optional NRP

$3.35 USD
$36.62 USD $3.35 USD
Sale Sold out
Shipping calculated at checkout.
Finish
Pin

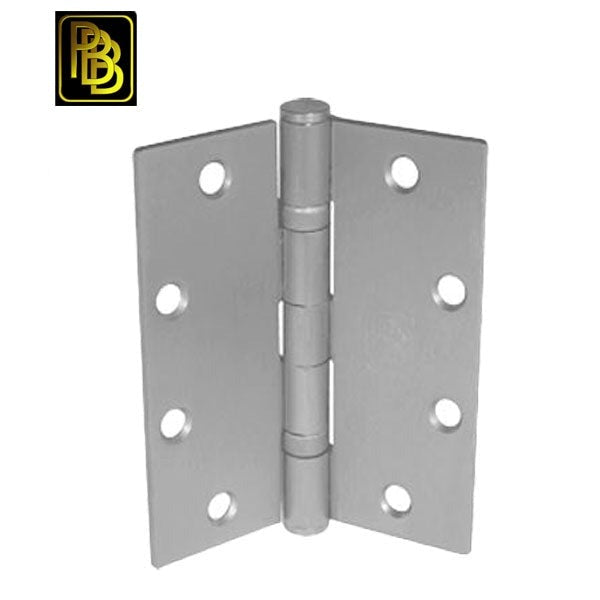

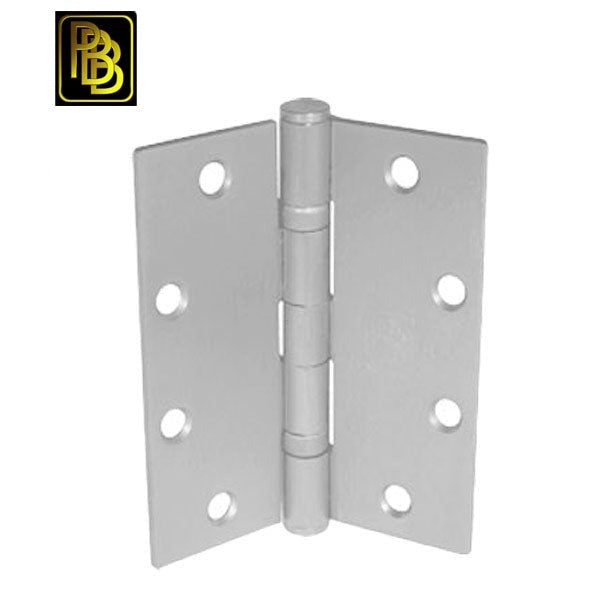

This is a 4B81 Heavy Weight Full Mortise Ball Bearing Architectural Hinge manufactured by PBB.

PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI). For use on medium weight doors or doors requiring average frequency service.

Features

  • Ball Bearing
  • Full Mortise
  • Center Hinge Position
  • 4-1/2" x 4-1/2"
  • Includes Screw Pack with all machine screws (24), and 1/2" wood screws (12)
  • Optional Finish
  • Non Removable Pin in Satin Chrome and Stainless Steel ONLY

Specifications

Corner Type Square
Duty Weight / Class Heavy Weight
Height 4-1/2"
Width 4-1/2"
Standard Screw Size
FHWS – 12 x 1-1/4”
Material Gauge 0.180
Finish Optional Finish
Certification ANSI A8111
