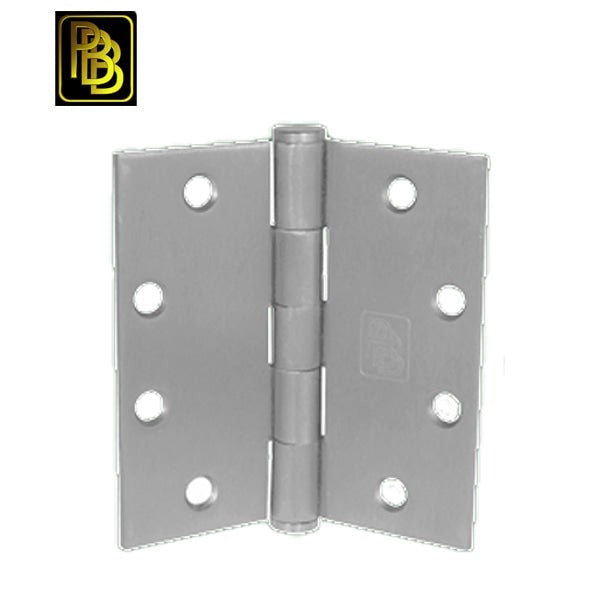

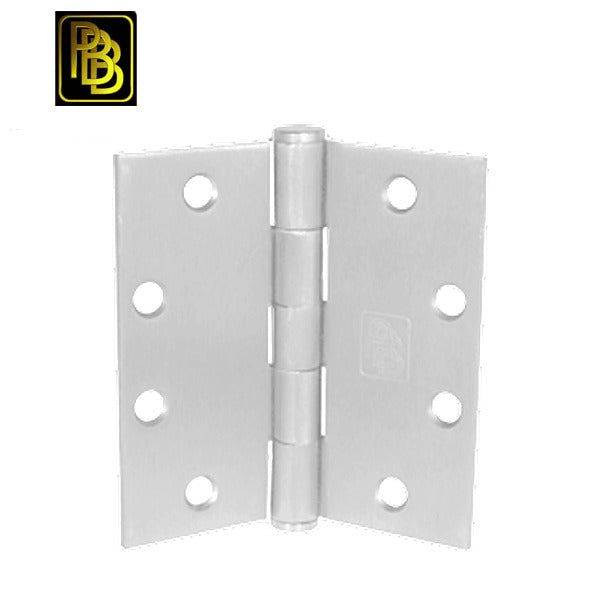

PBB - PB81 - Architectural Hinge - Full Mortise - Plain Bearing - 3.5" x 3.5" - Optional Finish - Grade 3
PBB - PB81 - Architectural Hinge - Full Mortise - Plain Bearing - 3.5" x 3.5" - Optional Finish - Grade 3
Regular price
$1.78 USD
Regular price
$7.14 USD
Sale price
$1.78 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
PBB-PB813535652R-PB81
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute
Features:
- For use on standard weight doors or doors receiving low frequency usage
- 3.5" x 3.5"
- Finishes available: Satin Chromium, Primed for painting, Satin Nickel Plated
- 1/4" Rounded corners available in Satin Chromium finish
- Includes screw pack with machine screws and wood screws
- Not for use with door closers
- Satin Nickel and Primed for paint in Squared ONLY
Specifications:
| Hinge Type | Plain Bearing |
| Corner Type | Square or Rounded on select finishes |
| Duty Weight / Class | Standard weight |
| Height | 3.50 ± .015 |
| Width | 3.50 ± .015 |
| Max door size | 2'6" x 7' |
| Max door weight | 40 |
| Material Gauge | .123 ± .005 |
| Finish | Satin Chromium, Primed for painting, Satin Nickel Plated |
| Certifications | Grade 3, ANSI/BHMA A156.17, UL Listed |
