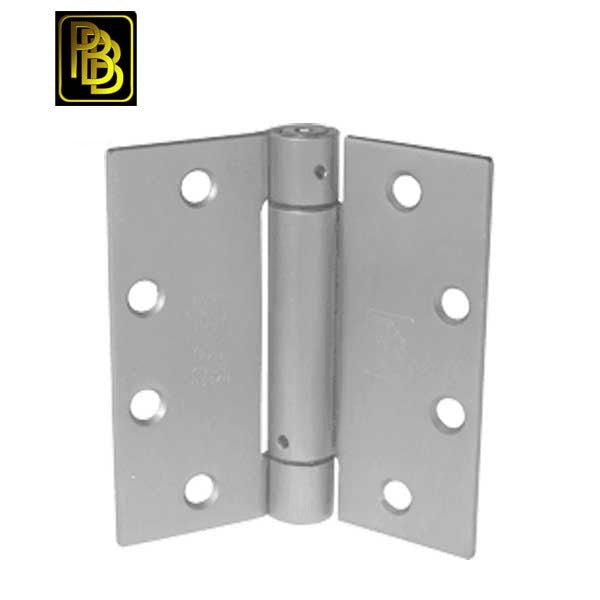

This is the SP81 Standard Weight Spring Hinge by PBB. PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI).
Features
UL Listed
4-1/2" x 4-1/2"
Grade 1
Optional Finish
Includes Screw Pack with all machine screws (24), and 1/2" wood screws (12)
Specifications
Hinge Type
Full Mortise
Corner Type
Square
Duty Weight / Class
Standard Weight
Height
4-1/2"
Width
4-1/2"
Max door size
3’ x 7’ x 1 3/4”
Standard screw size
FHWS – 12 x 1-1/4″
Max door weight
150 lbs
Mounting Location
Center Hinge Position
Material Gauge
0.134
Finish

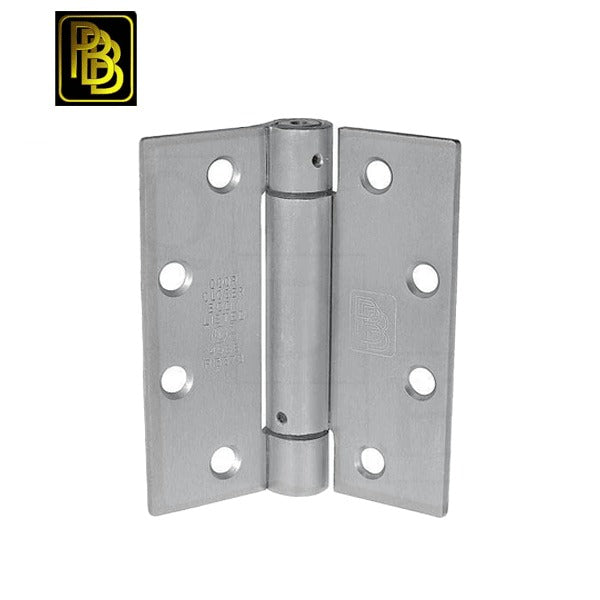

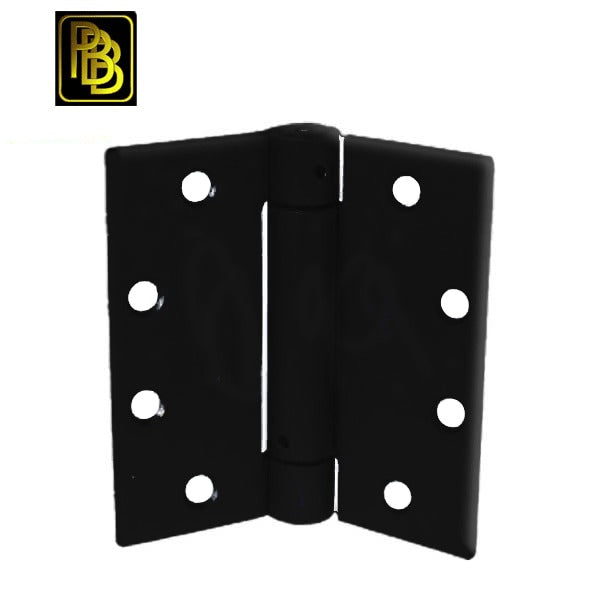

USP Prime Coat , (US26D) Satin Chrome Plated , Gloss Black
