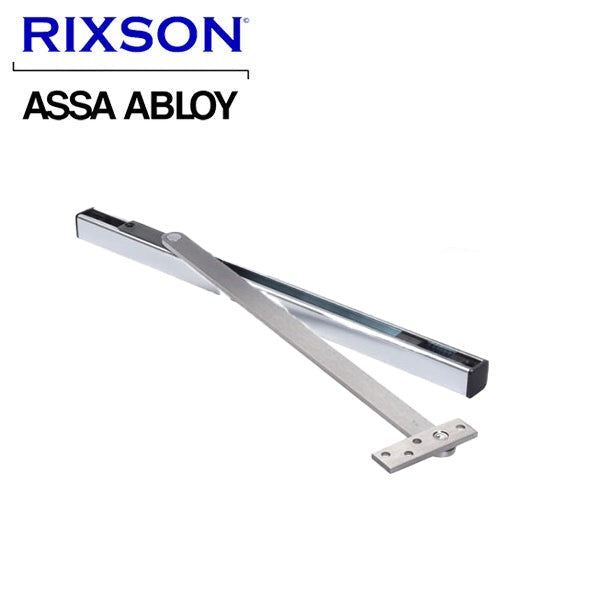

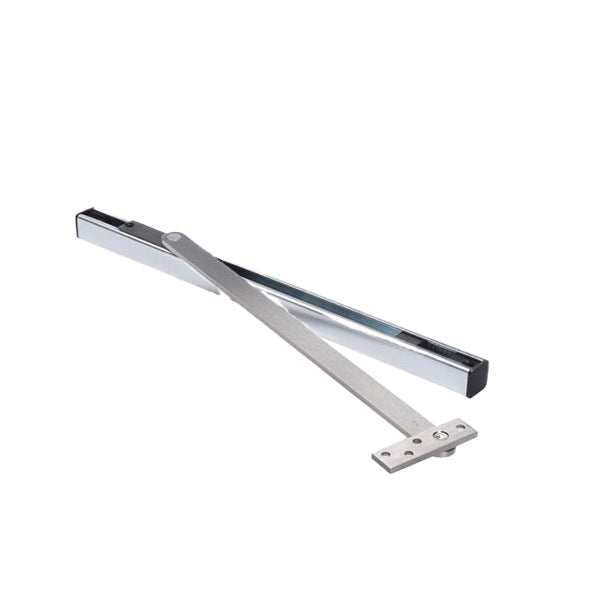

Rixson - 1-336 - Checkmate Concealed Overhead Holder/Stop - Non-Handed - 646 - Satin Nickel - Grade 1

Checkmate® overhead stops and holders are used to extend the life of the door, frame, and any door closing devices. They are ideal for installations prone to strong winds, high traffic, or abuse, and when used with a floor closer, they provide absolute control at the top and bottom of the door.

Features:

• Heavy-duty

• Stop – door dead stops at a particular degree of opening

• Slide track design

• 1-3/4″ minimum door thickness

• 110° maximum opening

• Heavy shock absorber spring provides 5-7° compression before dead stop

• Durable slider cam and shock block

• 1-3/16″ square channel

• Complete screw packet for installation in wood and machine screws for door and frame.

Specifications:

Downloads:

• Catalog
• Installation Instructions
