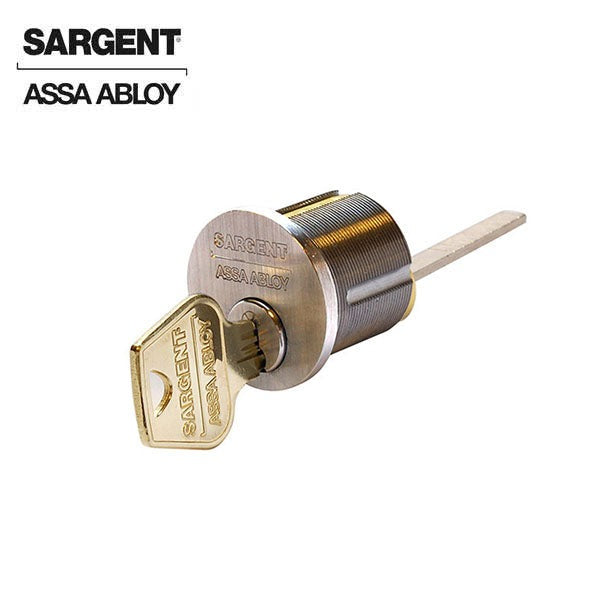

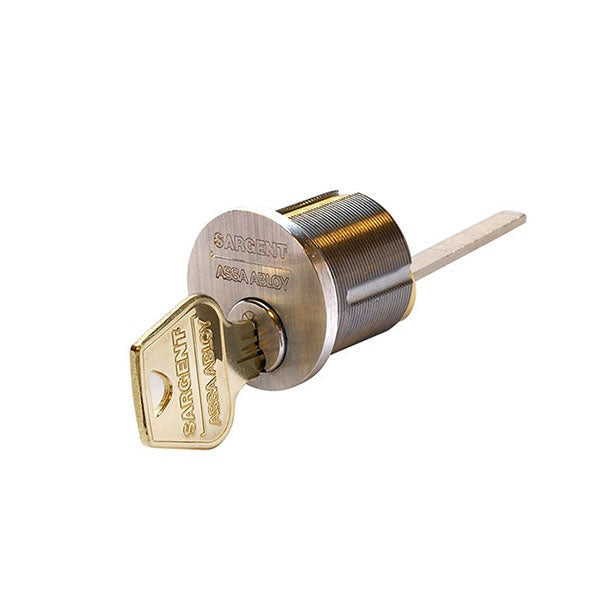

Sargent - 34-RB - Rim Cylinder with 2 Keys - RB Keyway - Satin Stainless Steel

Sargent Rim cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring, and break off screws and tailpiece. Tailpieces are horizontal only.

Supplied with 2 nickel silver change keys.

Specifications:

• Sargent 34 Rim Cylinder 6-Pin
• Satin Stainless Steel
• RB Keyway
• Door Thickness When Used W/ Outside Trim: 2-3/8" to 3-1/4" (60mm to 82mm)
• 27/32" (21mm) screw pattern for through-bolted SARGENT exit devices
• Cylinder: Solid brass
• Cap: Brass, bronze or stainless steel
• Furnished standard with No. 97 rosette and compression spring, “break-off” screws and back plate
• 6 pin standard
• Horizontal tail piece only
• Cylinders BHMA A156.5 Grade 1 listed except hotel functions.
