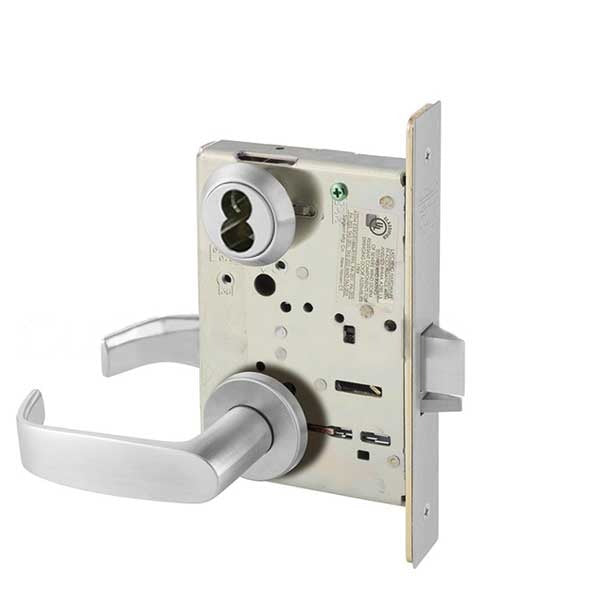

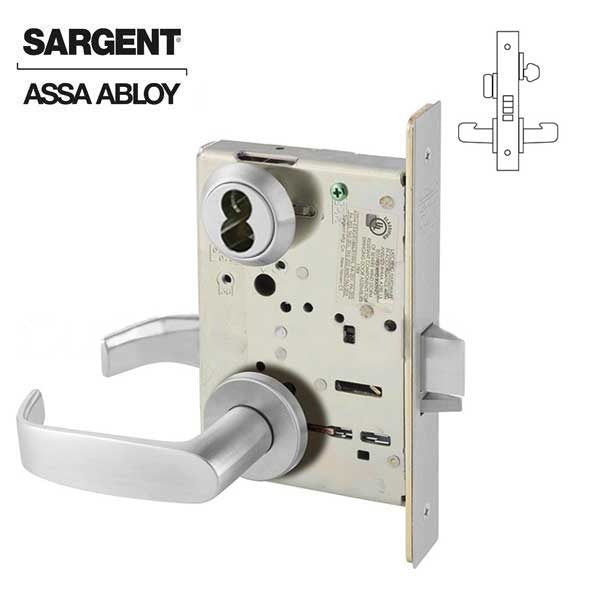

Sargent - 8205 - Mechanical Mortise Lock - LN Rose / L Lever - Office/Entry - LFIC - 0 Bitted Core - 26D - Satin Chrome Plated - Grade 1

The Sargent Office or Entry mortise locks are designed and constructed with high quality components to provide maximum security, performance and durability. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Office or Entry lock: Key outside retracts latch-bolt, also locks and unlocks outside trim; Trim inside always retracts latch-bolt, trim outside remains locked; Thumb-turn inside locks and unlocks outside trim.

Features

• Strong and Reliable
• Pre-assembled components make installation fool-proof
• Lock easily re-handed without removing parts or opening the lock case
• Only 30 degrees of lever rotation required to retract latch-bolt for easy operation
• Key outside retracts latch-bolt, also locks & unlocks outside trim

• Trim inside always retracts latch-bolt, trim outside remains locked

• Auxiliary dead-latch

• Multi-function 8200/R8200/7800 lock-body

• Field Reversible
• Exceeds Grade 1 requirements




Specifications

Downloads

• Product Template
• Installation Guide
