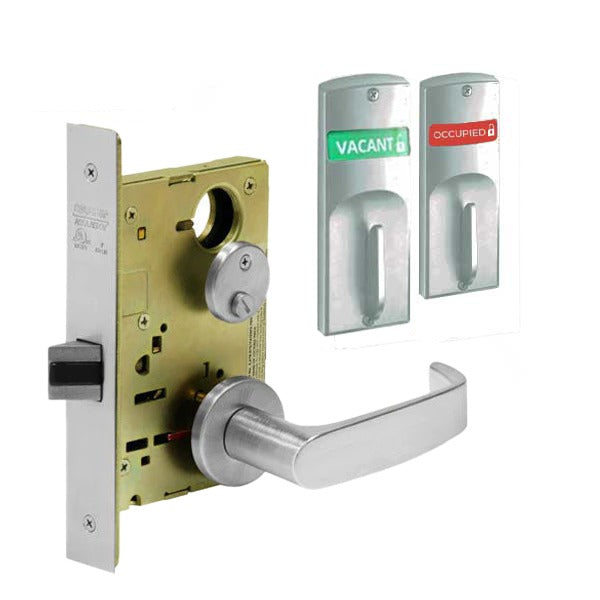

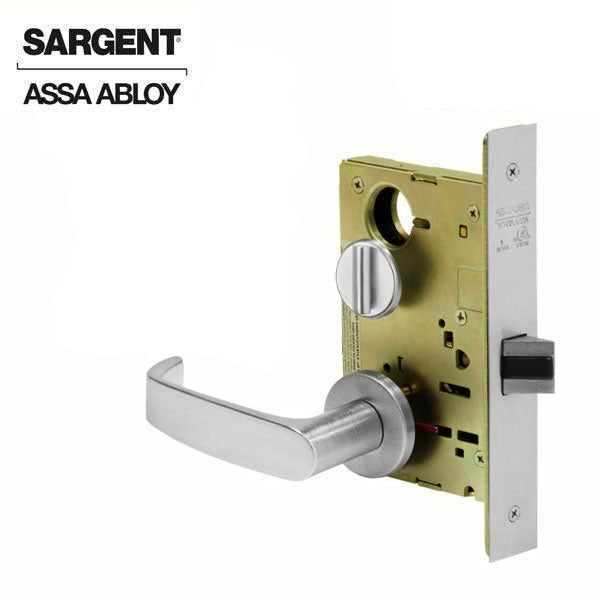

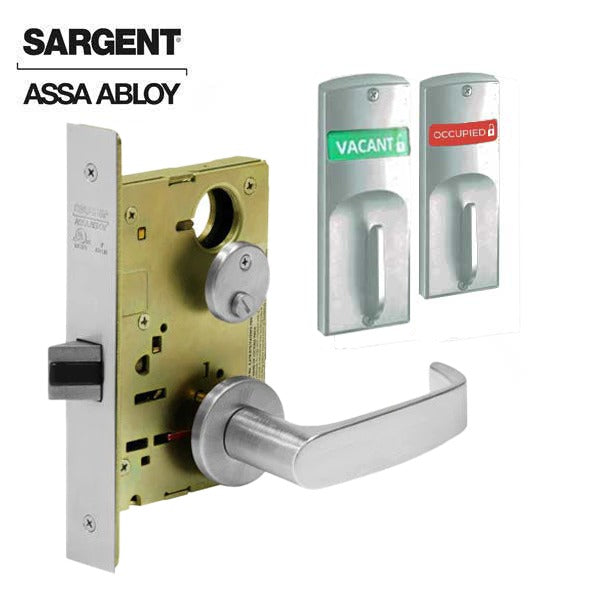

Sargent - 8265 - Mechanical Mortise Lock - O Rose / NJ Lever - Privacy w/ Indicator - 1-3/4" Frame - Satin Chrome - Grade 1
Sargent - 8265 - Mechanical Mortise Lock - O Rose / NJ Lever - Privacy w/ Indicator - 1-3/4" Frame - Satin Chrome - Grade 1
Regular price
$227.25 USD
Regular price
$909.00 USD
Sale price
$227.25 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.
These Indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/unlocked status of a room.
Features:
- Strong and Reliable
- Pre-assembled components make installation fool-proof
- Lock easily re-handed without removing parts or opening the lock case
- Only 30 degrees of lever rotation required to retract latchbolt for easy operation
- Privacy Function with Indicator - Both sides always unlocked except when inside thumbturn is thrown
- Exceeds Grade 1 requirements
Specifications:
| Construction: | Heavy Duty Steel |
| Lock Function: | Mechanical Mortise Lock - Privacy - Outside Unlocked / Inside Thumbturn Lock |
| Door Thickness: | 1-3/4" |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | 8”L x 1-1/4”W |
| Strike: | ANSI 1-1/4" Standard; Curved lip, non-handed |
| Strike Height: | 4-7/8" |
| Frame Inner Dimension Requirements: | 8”L x 1-1/2”W x 1-1/2”D |
| Bolt Diameter: | 3/4” |
| Bolt Throw: | 1” |
| Stile: | 4-3/4" |
| Rose & Lever: | Standard LN Rose and B Lever |
| Cylinder: |
Thumbturn (T3) |
| Indicator: | Outside - Green (Vacant) /Red (Occupied) |
| Finish: | 626 - Satin Chrome |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 10-Year Manufacturer Warranty |
