Sargent
Sargent - RX2860 - 10G70/71 Series - Electrified Cylindrical Lock - Fail Secure - 12V - LL Design - LFIC Prep - Less Core - RX Switch - Satin Chrome (26D)
Sargent - RX2860 - 10G70/71 Series - Electrified Cylindrical Lock - Fail Secure - 12V - LL Design - LFIC Prep - Less Core - RX Switch - Satin Chrome (26D)
Regular price
$280.26 USD
Regular price
$1,121.04 USD
Sale price
$280.26 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

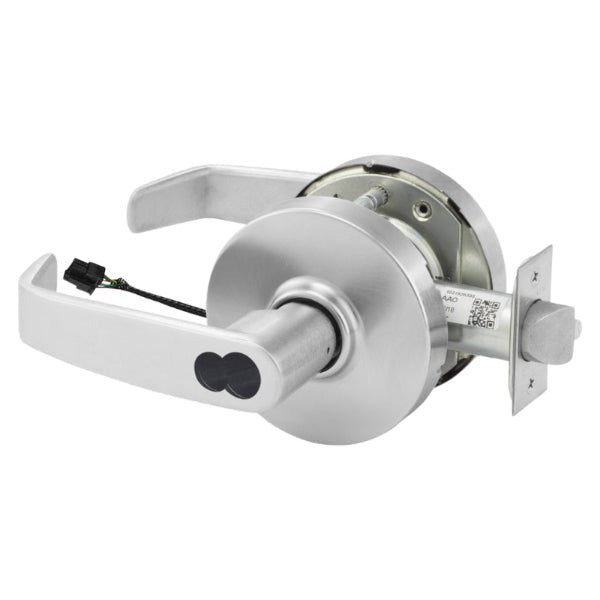

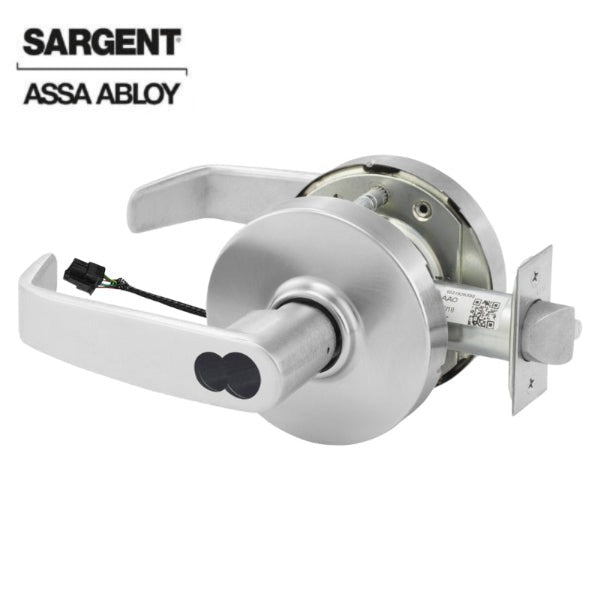

The SARGENT RX2860-10G71-12V-LL-26D is a heavy-duty, Grade 1 electrified cylindrical lock from the 10G70/71 Series, designed for high-security applications in institutional settings. It features a fail-secure function, ensuring the outside lever remains locked during power loss, while always allowing free egress from the inside. The lock is equipped with a Request-to-Exit (RX) switch for monitoring inside lever operation and is prepped for a Large Format Interchangeable Core (LFIC), supplied with less core. Its Satin Chrome finish (626/US26D) offers a sleek, corrosion-resistant appearance.
| Specifications | |
|---|---|
| Series | 10G70/71 Electrified Lever Locks |
| Function | 71 – Electromechanical Fail Secure |
| Voltage | 12VDC regulated |
| Current Draw | 500mA at 12VDC |
| Monitoring | RX Switch (Request-to-Exit) |
| Cylinder Type | SARGENT LFIC Prep, Less Core |
| Lever Design | L Lever with L Rose |
| Finish | 626/US26D Satin Chrome |
| Latch | Deadlatch, 1/2" throw, 2-3/4" backset |
| Strike | 808 ASA, 4-7/8" height, 1-1/4" width |
| Door Thickness | 1-3/4" to 2" |
| Handing | Non-handed |
| Fire Rating | 3 Hours (UL Listed) |
| Compliance | ADA, ANSI/BHMA A156.2 Series 4000 Grade 1 |
| Country of Origin | USA |
| BAA Qualified | Yes |
| Connector | ElectroLynx® 8-Pin |
