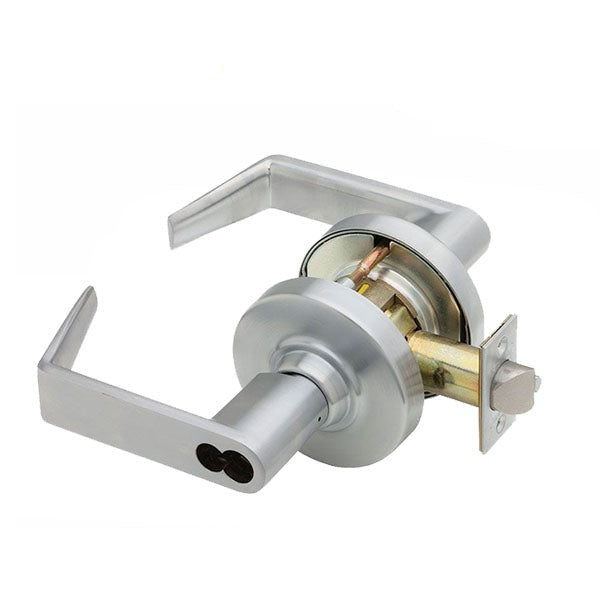

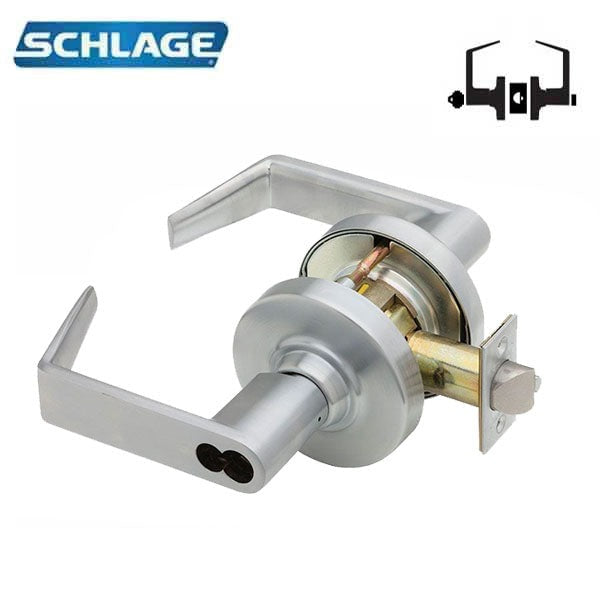

Schlage - ND50JD - Commercial Lever Set - Entrance/Office - Less FSIC - Satin Chrome - Rhodes Lever - Fire Rated - Grade 1

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

Features

• Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
• Prepped for FSIC cylinder formats (Schlage 23-030 Full Size Interchangeable Core Sold Separately)
• Fire Rated for 3 Hours
• TLR - Tubular Lever Style
• Cylinder NOT INCLUDED
• Push-button locking.
• Push-button locks outside lever until it is unlocked with key or by turning inside lever.
• Inside lever always free for immediate egress.

Specifications

Dimensions RHODES

Downloads

• Catalog
• Installation Instructions
