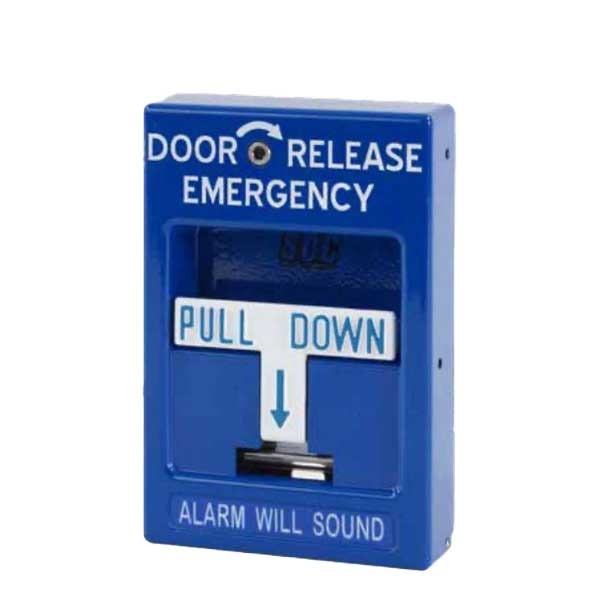

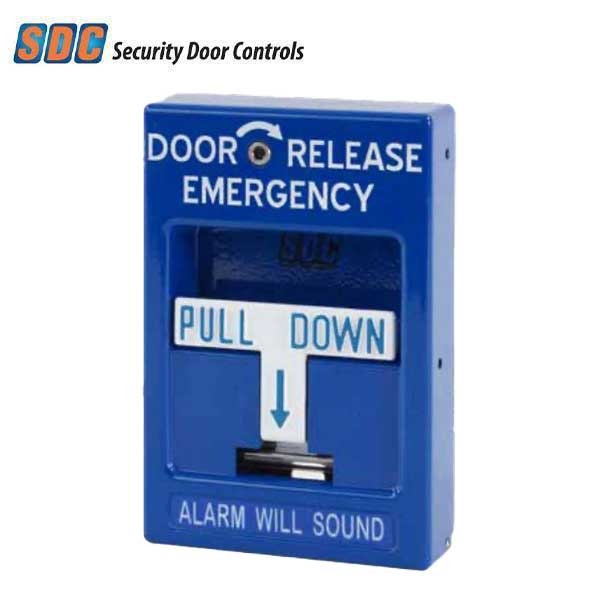

SDC - 492 - Pull Station Emergency Exit Door Release - Blue

The SDC 492 Emergency Door Release Pull Station provides immediate unlocking of perimeter doors or interior doors that are equipped with fail-safe electric locks. The 492’s built in alarm may be used as a local door annunciator. The 492 is specifically designed for emergency door release and may influence the approval of an electric locking system.

Features:

• Blue housing with easy to read activation instructions avoids confusion with red fire alarm stations.
• The SDC 492 may initiate the release of an individual door or all doors on the same circuit.
• The SDC 492 may be mounted in a 2” deep single gang back box or double gang box with plaster ring cover. The SDC 492 may be surface mounted with a 492-BB surface mount back box



Downloads:

• Data Sheet
• Installation Manual
