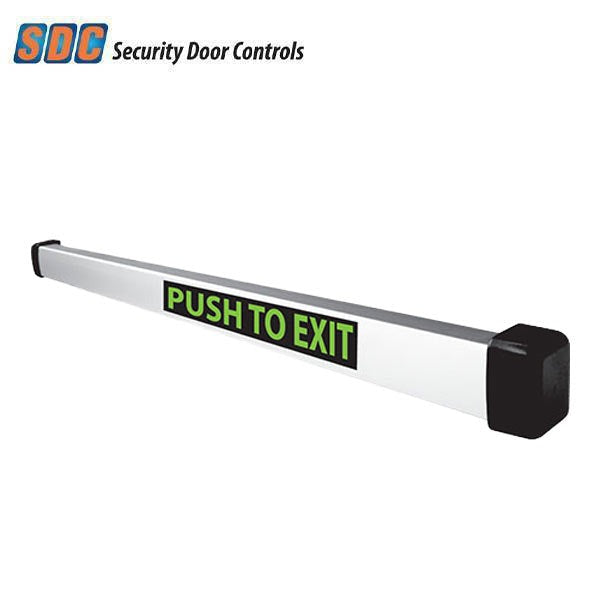

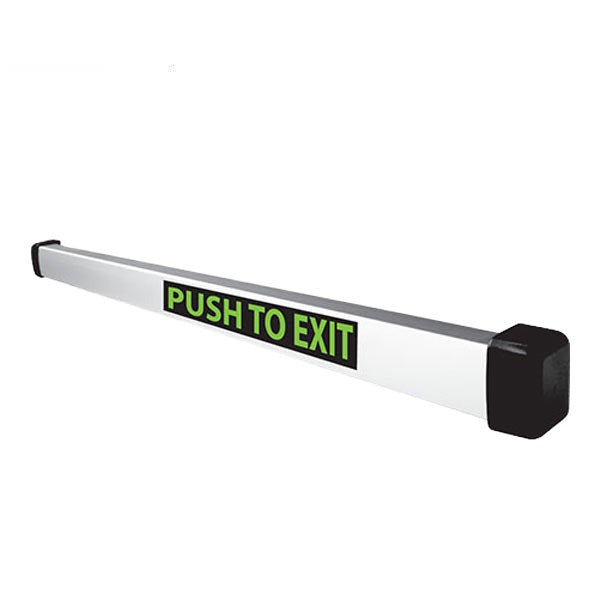

SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized

The MSB550W is designed to release electromagnetic door locks for uninhibited egress in outdoor weather exposed applications. When slight pressure is applied a microswitch is actuated, immediately releasing the electromagnetic door lock, making it the perfect Gate Lock companion. The MSB5500W is an economical alternative to sensor activated bars.

Features:

• Water Sealed Switches - The MSB550W features a high-quality watertight miniature snap action switch with a monoblock construction, ensuring high sealing capacity. Switch body meets IP67 (IEC 529) requirements.
• Heavy Duty Construction - The MSB550W utilizes heavy-duty aluminum extrusion and rugged end< caps. The mounting assembly is all metal. The rigid construction prevents any malfunction.
• Only 1/8” Total Bar Movement - The MSB550W has a maximum movement of only .125”. Trigger activation to release the electromagnetic lock is quick and quiet.
• Perfect Companion for Gate Lock Solutions - The MSB550W’s watertight switches makes it a perfect companion for outdoor gate solutions. For additional system components, see back page.

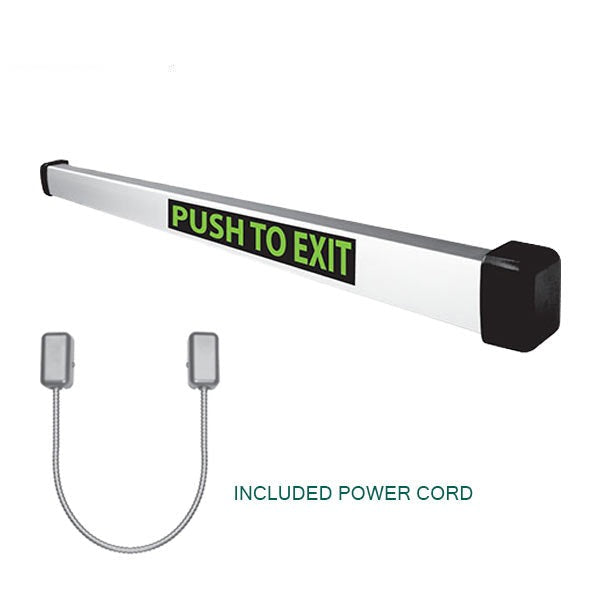

• Includes PT-3 Stainless Steel Shielded Power Cord
