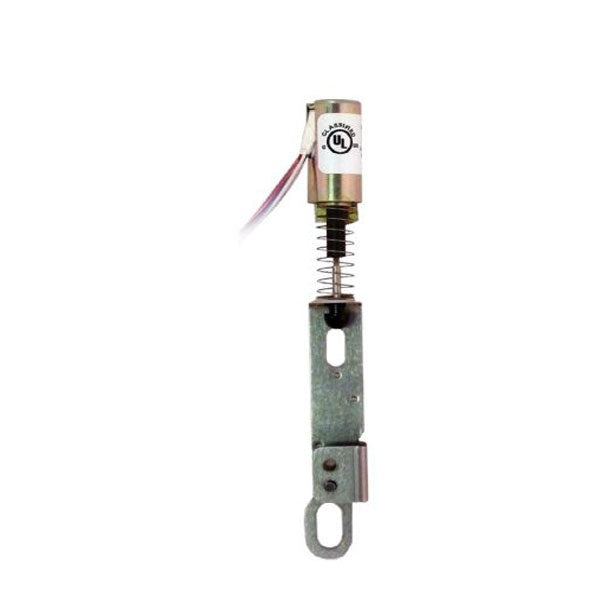

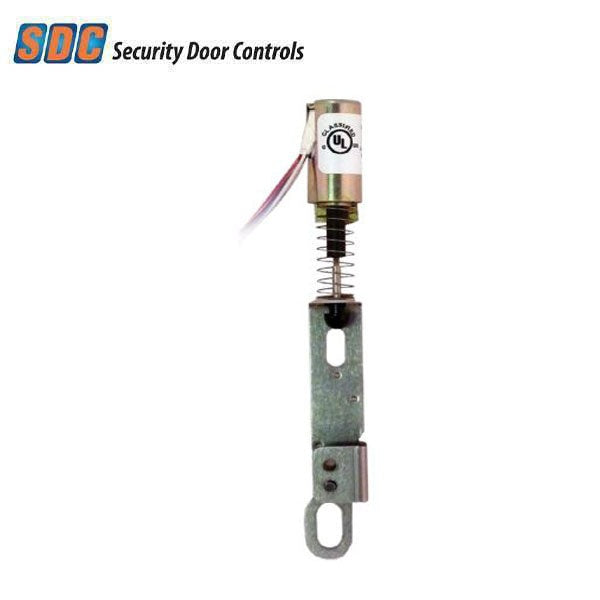

SDC - S7800 - Mortise Lock Field Electrification Kit - SPDT - Fire Rated - 12/24VDC
SDC - S7800 - Mortise Lock Field Electrification Kit - SPDT - Fire Rated - 12/24VDC
Regular price
$30.92 USD
Regular price
$123.70 USD
Sale price
$30.92 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Convert mechanical locks into electric access controlled locks. SDC’s SK series field electrification kits for Schlage L9070 mortise locks allow for fast electrification of existing locks in the field. Failsafe and failsecure options are easily selected and can be changed in the field to suit any need.
More Information Below:
Specifications:
| Type: | Schlage L9070 Field Electrification Kit |
| Input: | 12/24 VDC ± 10% |
| Current Draw: | 600 mA @ 12 VDC; 300 mA @ 24 VDC |
| Fire rated: | Positive Pressure Fire Tests of Door Assemblies |
| Certifications: |
UL Listed, UL 10C |
| Manufacturer's Warranty: | 3 Years |
