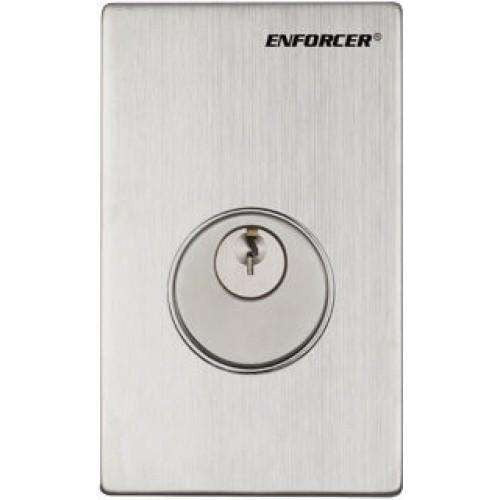

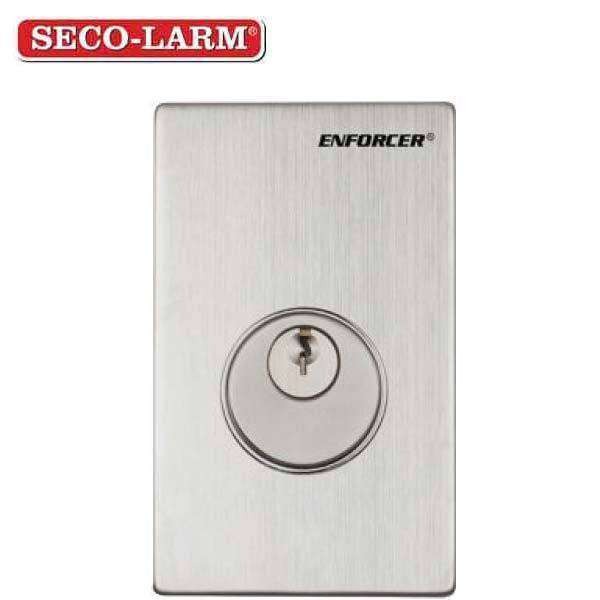

Seco-Larm - Mortise Cylinder Key Switch - Momentary

Single-Gang, Keyed mortise cylinder (2 keys included)

If a keypad or proximity card reader fails to activate an electronic lock, the user can switch between normally closed (N.C.) and normally open (N.O.) contacts using the Single-Gang Mortise Cylinder Key Switches (available with either momentary or maintained outputs), forcing the door to open. This acts as a backup for access control systems, so that the system does not rely on the integrity of a single device.

• Keyed mortise cylinder (2 keys included)
• Mortise cylinder removable for ease of keying
• Flush mount with vandal-resistant screws
• Chrome-plated aluminum back plate fits to single-gang box
• Stainless-steel front cover conceals mounting screws
• DPDT, 25A@24VAC contact rating

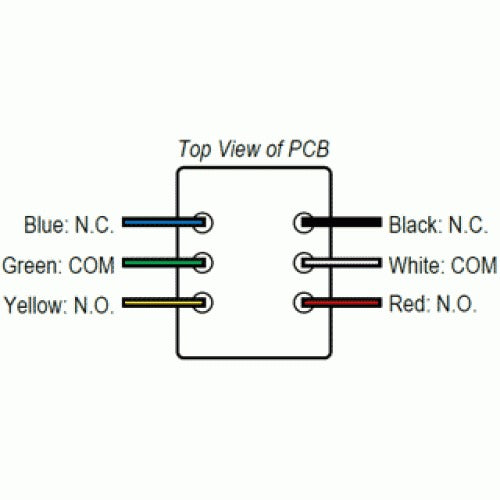

• Color-coded wires
• Momentary (SD-72081-6MQ) output



• Datasheet
• Manual
