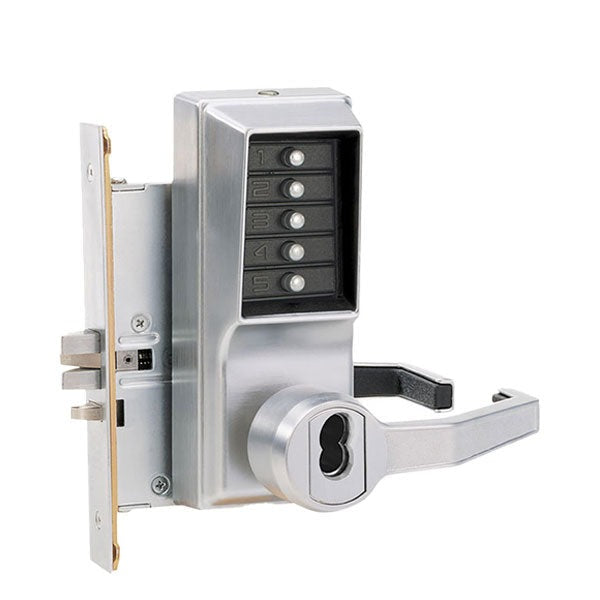

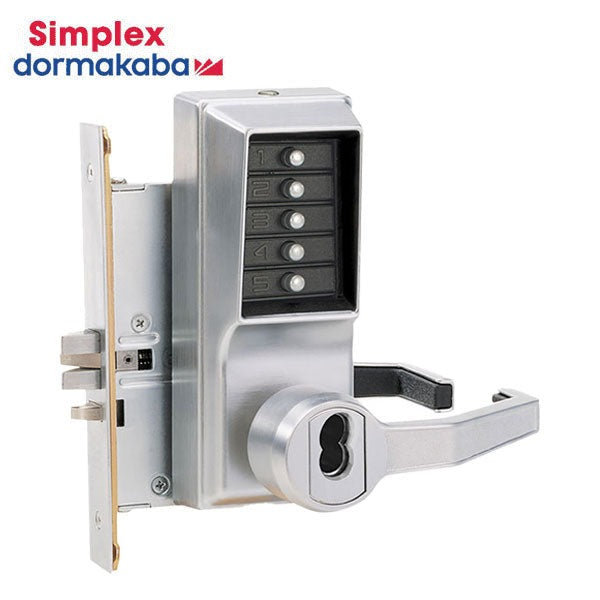

Simplex - L8146B - Mechanical Pushbutton Mortise Lever Set - Combination Entry/Passage Function With Key Override - LFIC Prep - 23⁄4" Backset - Satin Chrome - LH
Simplex - L8146B - Mechanical Pushbutton Mortise Lever Set - Combination Entry/Passage Function With Key Override - LFIC Prep - 23⁄4" Backset - Satin Chrome - LH
Couldn't load pickup availability
The Simplex 8100 mechanical pushbutton lock, with mortise locking device options and lever handle, provides exterior access by combination while allowing free egress. The numeric Keypad is vandal-resistant with solid metal pushbuttons. (Core Not Included)
Features:
- A cost-effective access control solution
- Number of codes: Single access code - one easy-to-manage code for all users
- Programming: The lock is easily programmed via keypad without removing the lock from the door
- Cast front housing; unified trim plate; fixed ADA-compliant levers
- Vandal-resistant, solid metal pushbuttons
- Factory-handed; not field reversible
- 5" Minimum stile recommended
- 3-hour UL/ULC fire rating for "A" labeled doors
- Weather resistant
Specifications:
|
Construction: |
Cast front housing; unified trim plate; fixed ADA—compliant levers |
|
Locking Device: |
Mortise with ¾" (19 mm) two-piece anti-friction latch |
|
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
|
Handing: |
Left Hand, Factory-handed; not field reversible |
|
Finish: |
Satin Chrome 26D (626) |
|
Key Override: |
LFIC, Best and Equivalents (6 or 7-pin length); core not included |
|
Backset: |
2¾" (70 mm) |
|
Latch: |
¾" (19 mm) two-piece anti-friction latch |
|
Minimum Stile Recommended: |
5" (127 mm) |
|
Strike: |
4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate |
|
Door Preparation: |
Easily installs on wood or metal doors. Standard (86) mortise preparation |
|
Door Thickness: |
1¾" (44 mm) to 2¼" (57 mm) |
|
Accessibility Standard: |
Americans with Disabilities Act (ADA) |
|
Certification: |
BAA/NAFTA Certified |
|
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
|
Warranty: |
3 years manufacturer warranty |
Downloads:
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
