TELL - 7400 - Vertical Rod Exit Device - Grade 1 - Optional Finish - 36"
TELL - 7400 - Vertical Rod Exit Device - Grade 1 - Optional Finish - 36"
Regular price
$78.97 USD
Regular price
$315.90 USD
Sale price
$78.97 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

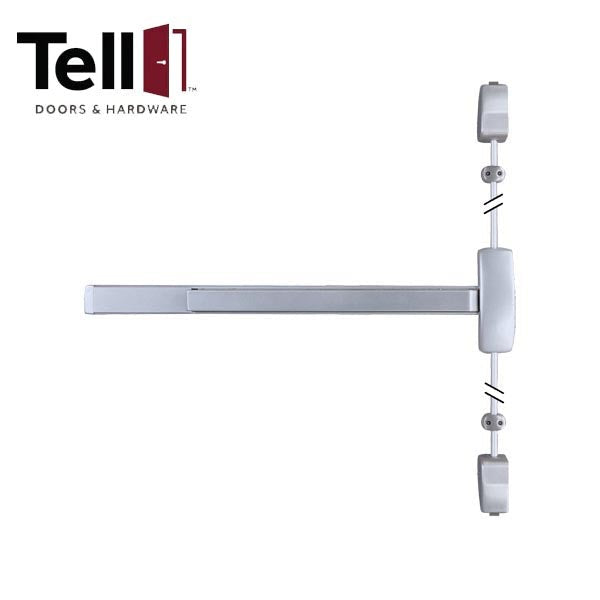

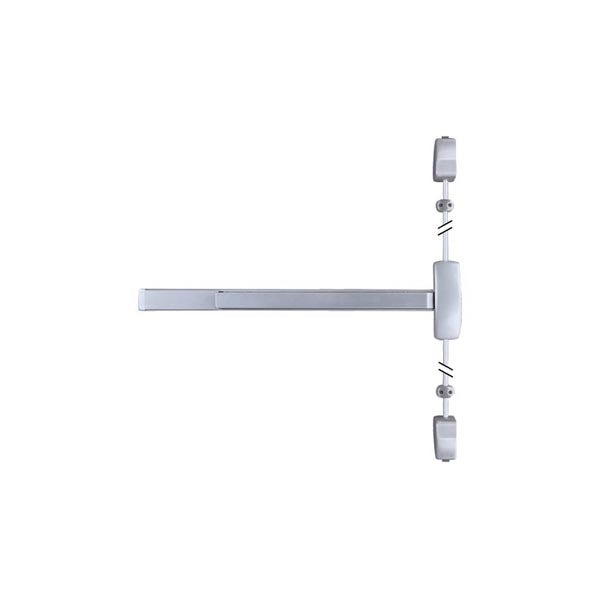

Tell Manufacturing's 7400B is a Grade 1 vertical rod exit device for commercial applications. The 7400B series is surface mounted and will fit on doors 28 in. to 36 in. W, which is easily field sizable. This vertical rod panic will work on doors 1-3/4 in. to 2 in. T. The vertical rod panic has a stainless steel finish. The 7300 series complies with ANSI A156.3 and is UL/ULC Listed.
Specification:
| Performance | Grade 1 Complies with ANSI A156.3, 1994 UL/ULC listed |
| Rail | Fits 28” to 36” or 36” to 48” doors Easily field sizable |
| Latch | Pullman latch bolts top and bottom Stainless steel 1/2” throw |
| Backset | 2-3/4” |
| Strike | Slotted holes for adjustments |
| Cylinder | SCC - C keyway 6-pin solid brass Keyed different (KD) |
| Fasteners | Accommodates wood or metal doors |
| Finishes | US32D Satin Stainless Steel Aluminum |
| Warranty | Lifetime limited |
