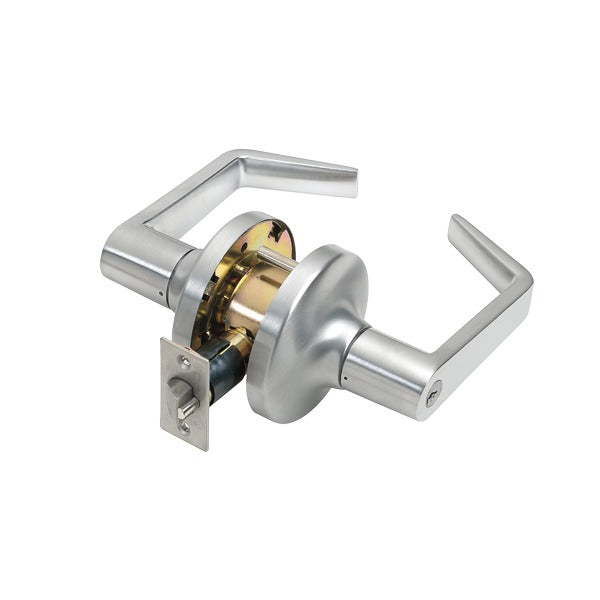

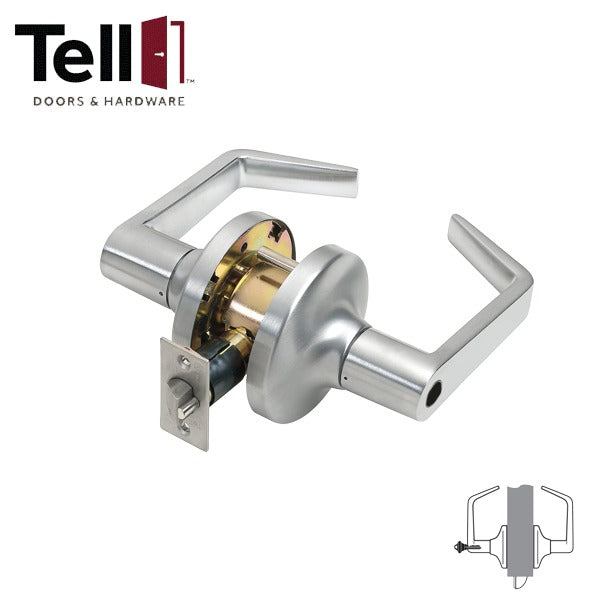

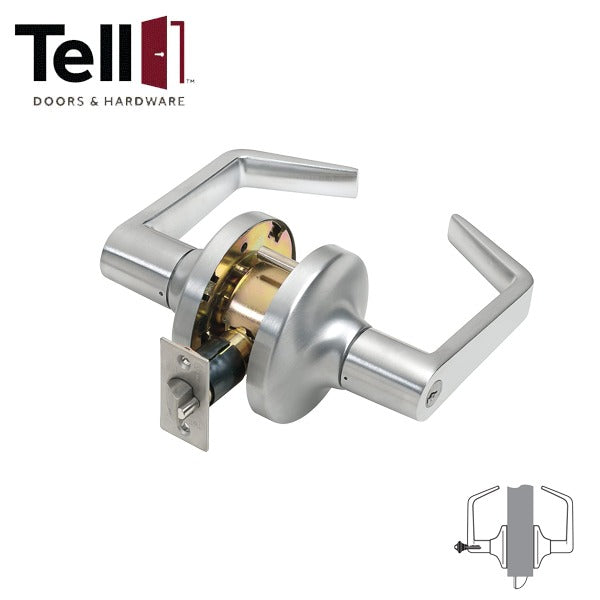

TELL - CL100398 - Heavy Duty Cylindrical Leverset - Cortland - Optional IC Core - 2-3/4" Backset - Satin Chrome - Grade 1 - Storeroom
TELL - CL100398 - Heavy Duty Cylindrical Leverset - Cortland - Optional IC Core - 2-3/4" Backset - Satin Chrome - Grade 1 - Storeroom
Regular price
$24.25 USD
Regular price
$96.98 USD
Sale price
$24.25 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The LC1286CTL Lever is a grade 1 cylindrical, heavy-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes are available.
| Performance | Grade 1 heavy duty 800,000 Cycles |
| Compliance | UL/ULC listed for up to 3-hour fire rated ANSI A117.1, American Disabilities Act (ADA) ANSI A156.2, Series 400 |
| Chassis | Cylindrical Steel – corrosion resistant Freewheeling clutch for added security Independent spring cages |
| Handle | Lever, solid cast non-handed |
| Latch | 2-3/4” Backset, 2-3/8" available 1/2” Stainless steel throw 1” Housing diameter 1-1/8” x 2-1/4” Faceplate |
| Rose | 3-1/2” Diameter |
| Strike | ASA Strike 1-1/4” x 4-7/8” Optional T-Strike 1-1/8” x 2-3/4” Optional F-Strike (full lip) |
| Cylinder | SCC Standard, C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver keys per lock cylinder |
| Door Range | 1-3/8” - 2” Thickness 2-1/8” Diameter for lever 1” Diameter for latchbolt Fits standard 161 door prep with thru-bolting |
| Door Preparation | 2-1/8” Diameter for lever 1” Diameter for latchbolt Fits standard 161 door prep with thru-bolting |
| Warranty | Lifetime limited |
