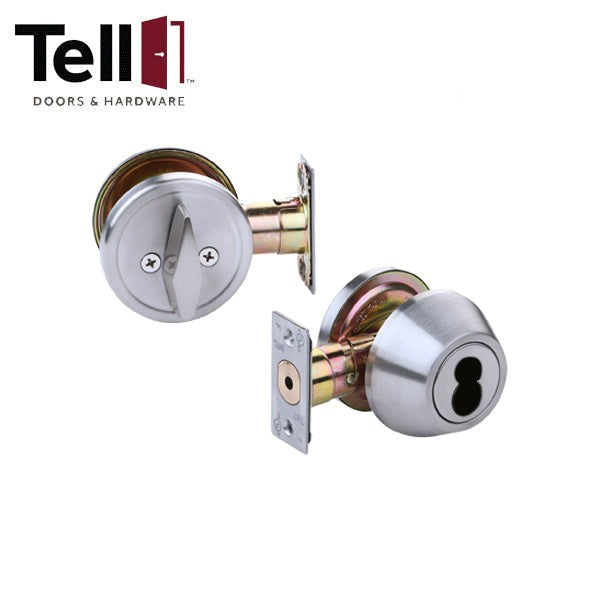

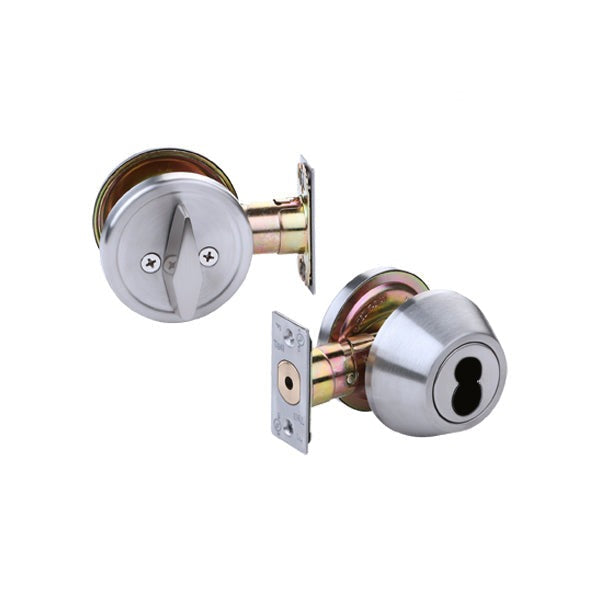

TELL - DB2000 Series - Standard Duty - Tubular Deadbolt - IC Core Prep - Stainless Steel - Grade 2

The DB2000 Series is a grade 2 tubular, standard duty deadbolt designed for superior security with a saw-resistant bolt with a 1" throw. Comes in double and single cylinder options in a satin stainless steel finish. The cylinder is a 6-pin solid brass keyway. Other finishes available.

Performance	Complies with ANSI A156.5 Grade 2, 150,000 cycles
Chassis	Tubular, steel
Deadbolt	1" Housing diameter (stainless steel) 1" throw with roller bar (added security for hacksaw or reciprocating blade cutting) 1" x 2-1/4" , faceplate
Backset	2-3/4"
Strike	1-1/8" x 2-3/4" , square corner faceplate
Cylinder	Less Core
Door Range	1-3/8” - 1-3/4”
Door Preparation	2-1/8" diameter for bore 1" Diameter for bolt Fits standard 161 door prep
Warranty	Lifetime limited
