TELL - F7300 - Rim Exit Device - Grade 1 - Surface Mounted - Stainless Steel - Fire Rated - 36"
TELL - F7300 - Rim Exit Device - Grade 1 - Surface Mounted - Stainless Steel - Fire Rated - 36"
Regular price
$68.13 USD
Regular price
$272.53 USD
Sale price
$68.13 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

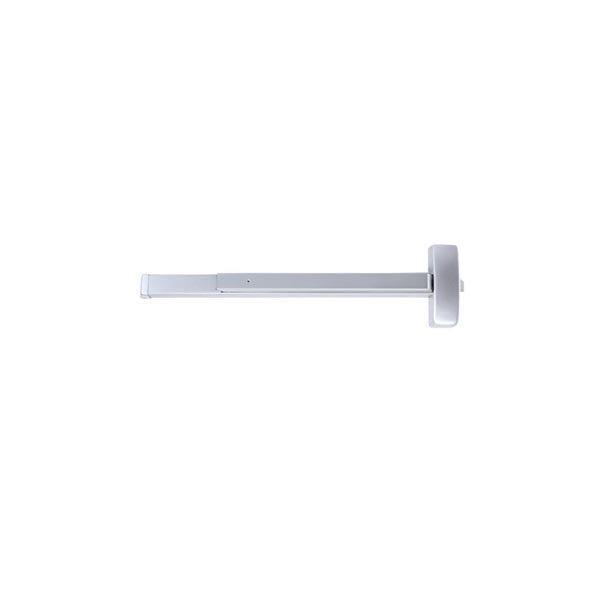

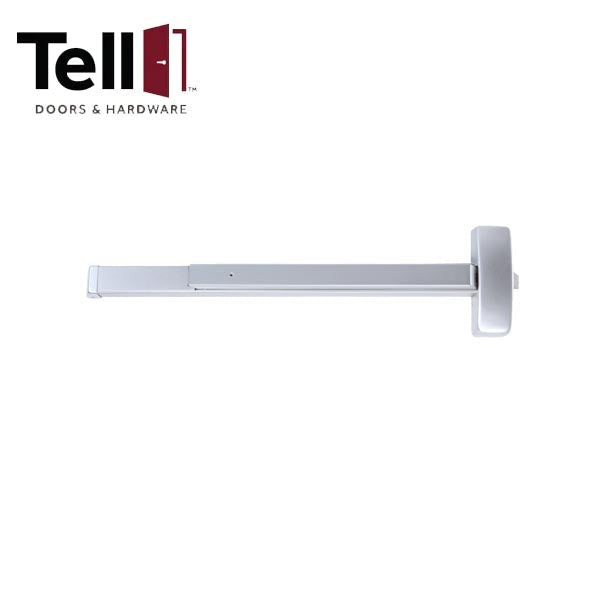

Tell Manufacturing's 7300B is a Grade 1 rim exit device for commercial applications. The 7300B series is surface mounted and will fit on doors 28 in. to 36 in. W. This rim panic will work on doors 1-3/4 in. to 2 in. T and has a stainless steel finish. This surface mounted rim panic complies with ANSI A156.3 and is UL/ULC Listed and can be mounted on wood or metal doors.
Specifications:
| Performance | Complies with ANSI A156.3, 1994 Grade 1 UL/ULC listed |
| Rail |
Fits 28” to 36” doors |
| Latch | Stainless steel 5/8” throw Deadlatch feature |
| Backset | 2-3/4” |
| Strike | 416 ASA Standard Slotted holes for adjustments Other strikes available |
| Cylinder | Schlage (SCC) - C keyway 6-pin solid brass Keyed different (KD) |
| Fasteners | Accommodates wood or metal doors |
| Door Range |
1-3/8” - 2” |
| Door Preparation |
Surface mounted |
| Warranty | Lifetime limited |
| Exterior Trim |
Exterior pull blank or cylinder Ball knob trim Lever trim Thumbpiece trim with rim cylinder Escutcheon lever trim |
