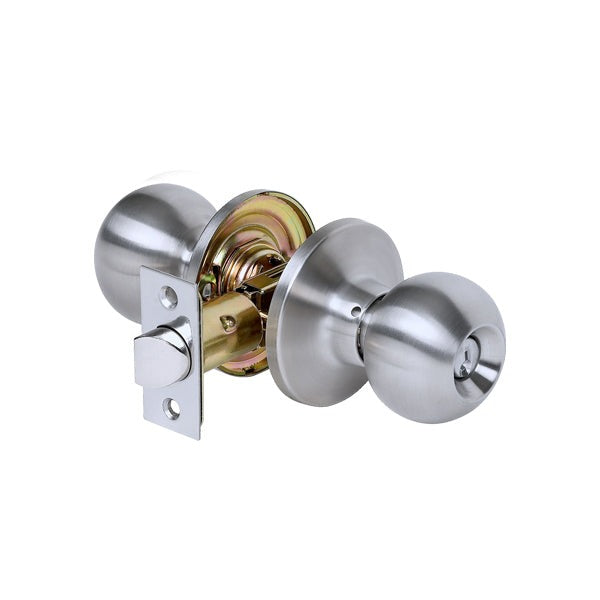

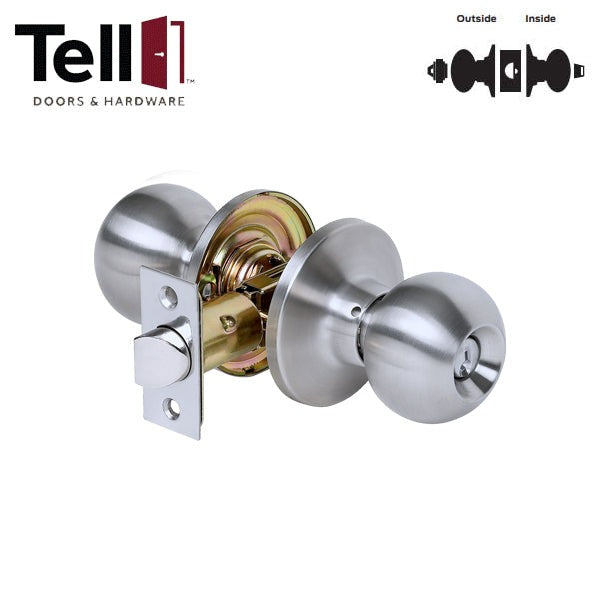

TELL - RL100113 - Light Duty Cylindrical Knob - Satin Stainless - Entrance
TELL - RL100113 - Light Duty Cylindrical Knob - Satin Stainless - Entrance
Regular price
$3.92 USD
Regular price
$13.06 USD
Sale price
$3.92 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
TELL-RL100113
The KC3500 Series Empire Ball Knob is a grade 3 cylindrical, light duty knob in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These knobs can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.
| Performance | Grade 3 light duty 200,000 cycles |
| Chassis | Tubular Steel - coated with zinc dichromate (corrosion resistance) |
| Latch | 2-3/4” or 2-3/8” Adjustable backset 1” Housing diameter 1/2” Stainless steel throw 1” x 2-1/4”, Square corner faceplate |
| Handle | Non-handed, solid cast |
| Strike | F-Strike (full lip) Optional T-Strike 1-1/8” x 2-3/4” Optional ASA Strike 1-1/4” x 4-7/8” |
| Rose | 3” diameter |
| Cylinder | SCC - C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Preparation | 1” diameter for latchbolt Fits standard 161 door prep |
| Door Range | 1-3/8” - 2” 2-1/8” diameter for lever |
| Warranty | Lifetime limited |
