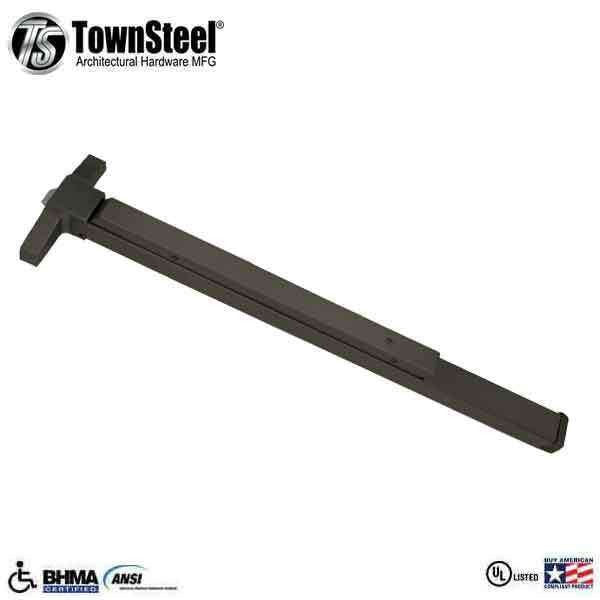

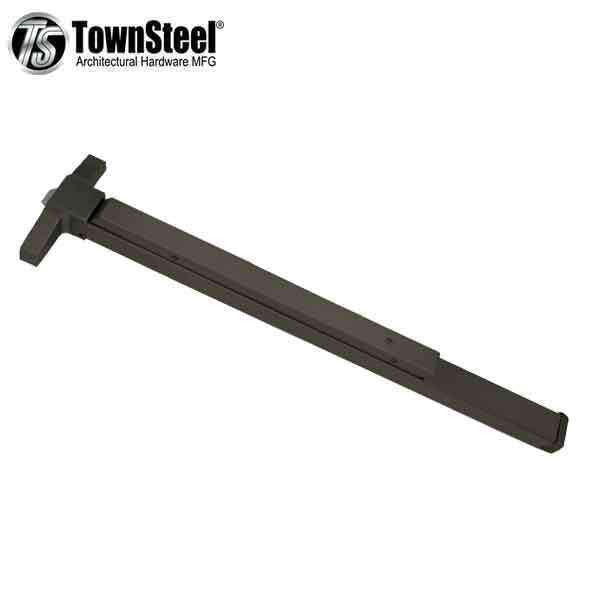

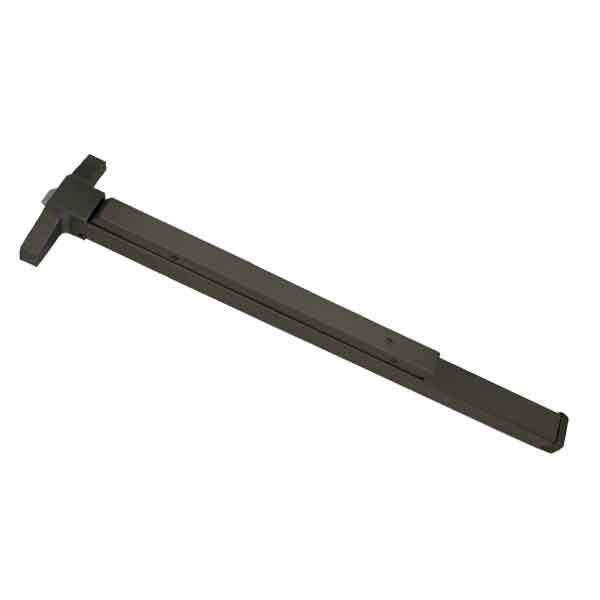

TownSteel - ED6500 - Narrow Stile Panic Exit Device Push Bar - 48" - Oil-Rubbed Bronze - Grade 1
TownSteel - ED6500 - Narrow Stile Panic Exit Device Push Bar - 48" - Oil-Rubbed Bronze - Grade 1
Regular price
$82.05 USD
Regular price
$273.49 USD
Sale price
$82.05 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The ED6500 Series rim device is designed for narrow stile application such as aluminum frame glass doors. It’s UL listed Grade 1 panic device.
More Information Below
Specifications
| Application |
For wood, metal or aluminum glass door with 1-3/4″ minimum stile width |
| Handing | Non-handed |
| Door Thickness |
1-3/4″ standard |
| Door Widths |
37" to 48", no cutting for 48" door |
| Door Width |
48″ device for up to 4′ wide opening |
| Device Length |
46-11/32" |
| Maximum Cut Down |
13-25/32" |
| Centerline from Finished Floor | 41″ |
| Push Rail Projection |
Neutral: 2-1/2″, Depressed: 1-7/8″ |
| Latch Bolt |
3/4″ throw, stainless steel |
| Strike | 246 Strike standard |
| Dogging | Allen wrench type |
| Mounting |
Furnished with wood and machine screws |
| Finish | 10B - Oil-Rubbed Bronze |
| Certifications |
UL/ULC -Listed panic and safety for all types of 4’x8′ single and 8’x8′ double doors ANSI/BHMA - Meets A156.3 Grade 1 requirements BAA - Meets requirements of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, support@townsteel.com or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
