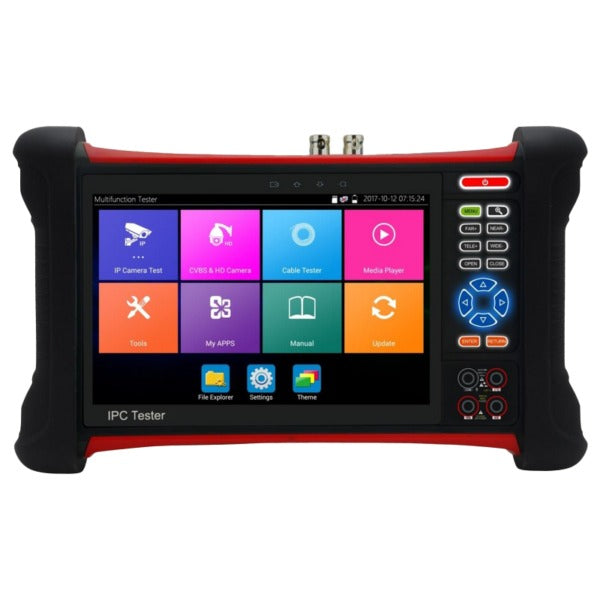

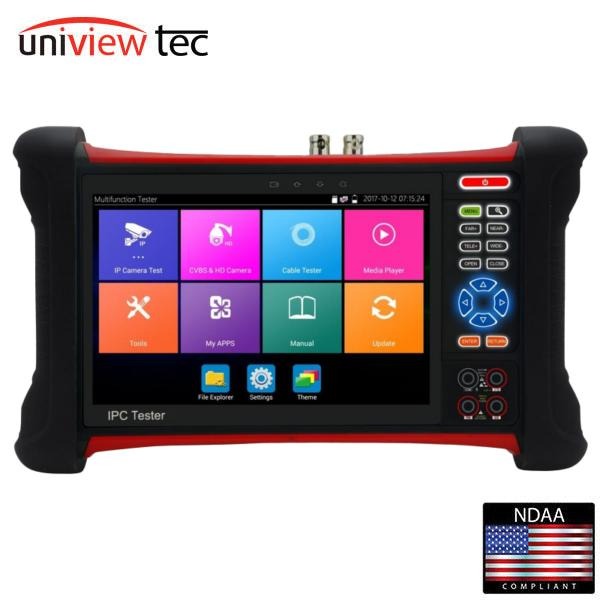

Uniview Tec / UVT / 4KTESTMON / Multi-Function Video Test Monitor
Uniview Tec / UVT / 4KTESTMON / Multi-Function Video Test Monitor
Regular price
$194.40 USD
Regular price
$648.00 USD
Sale price
$194.40 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Designed for installation and maintenance of IP and Analog camerasComposite video (CVBS, TVI, CVI, AHD) and IP video input support7” Retina Touch-Screen, 1920 x 1200 resolutionH.265 & H.264 standards support, up to 4K resolutionRJ45 Ethernet cable, video level meter and cable trace test supportPoE power voltage, PING and IP address searching supportHDMI input and outputONVIF Profile S CompliantRechargeable lithium battery and external 12VDC power supplyWi-Fi connectivity supportAudio, PTZ control and color bar generator support
| Video Test Monitor | |
|---|---|
| Monitor | 7” retina touch screen |
| IP Video | 1 - RJ-45, 10M/100M auto adjust |
| Analog Video | 1 x BNC input: CVBS, TVI, CVI, AHD 1 x BNC output |
| Serial Interface | 1 x RS-485 |
| HDMI | 1 x input and 1 x output |
| PoE | 1 x RJ45, 48V output, maximum 24W |
| Camera Power | 12VDC, 2A output power to camera |
| Audio | 1 x RCA input and 1 x RCA output |
| Micro SD Slot | 8GB card included |
| Power Supply | 12VDC, 2A |
| Operating Temperature | -10°C ~ + 50°C (4°F ~ 122°F) |
| Operating Humidity | 30% ~ 90% RH |
| Dimensions | 255 x 160 x 46mm (10 × 6.3 × 1.8") |
| Weight | .95kg (2.1lb) |
