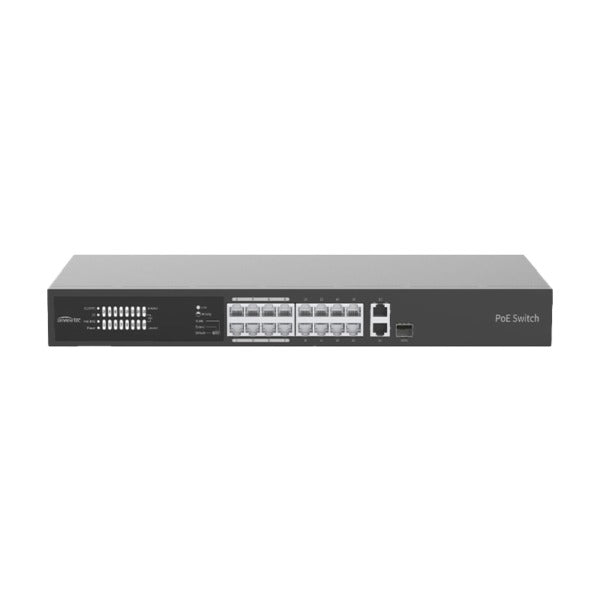

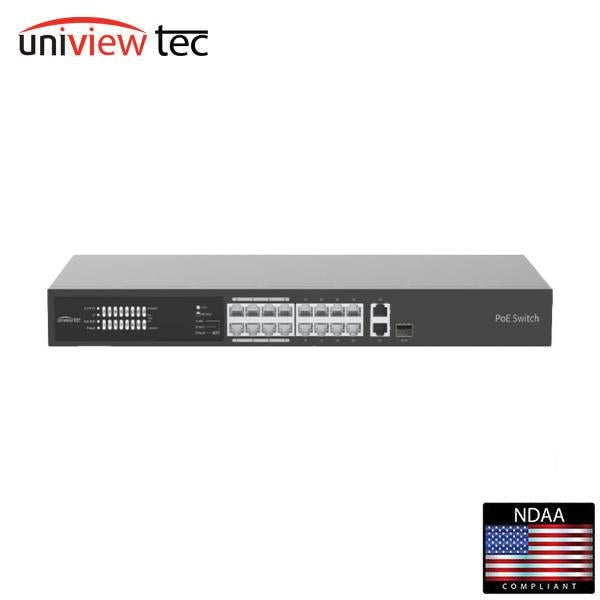

Uniview Tec / UVT / NSW162PX / 16-Port PoE Network Switch

Uniview Tec / UVT / NSW162PX / 16-Port PoE Network Switch

$86.70 USD
$289.00 USD $86.70 USD
Sale Sold out
Shipping calculated at checkout.

Fully Adheres to National Defense Authorization Act (NDAA) Guidelines16 x 100Mbps RJ45 PoE ports, 225W Total Capacity – model NSW162PXEach model has 1 x 1000Mbps SFP port and 2 x 1000Mbps Gigabit PortsSupport buffer optimization and port traffic controlMultiple working modes to address all applications: Normal, Secure and SurveillancePoE complies with IEEE802.3af/at, up to 30W for single portUp to 825ft (250m) transmission distance on EXTEND (Surveillance) modeHigh quality, metal housing and built-in cooling fan



    Video Test Monitor
    Ports 16 or 24 × 100Base-TX RJ45 PoE ports;
    1 x 1000Mbps SFT port and 2 x 1000Mbps Gigabit Ports
    Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x,
    IEEE802.3af, IEEE802.3at, IEEE802.3az
    MAC 16K
    Packet Forwarding Rate 5.36Mpps (16 port); 6.55Mpps (24 port)
    Switching Capacity 7.2Gbps (16 port); 8.8Gbps (24 port)
    Work Modes Default (Normal mode): All ports can communicate with each other.
    EXTEND (Surveillance mode): Transmission distance up to 250 meters.
    VLAN (Secure mode): Downlink ports can communicate only
    with uplink ports (24 port only)
    Indicator LED’s PWR: Steady on: AC input is normal;
    Off: No AC input
    PoE: Off: No PoE power supply;
    Steady on: PoE power supply is normal
    Flashing: PoE power supply is abnormal
    LINK/ACT: Off: No link
    Steady: Linked at 10/100Mbps
    Flashing: Transmitting data
    PoE 802.3at/af: Max capacity for single port = 30W
    16-port Max PoE capacity: 225W
    24-port Max PoE capacity: 370W
    Internal Cooling Fans 1, each model
    AC Voltage 100-240V, 50/60Hz
    Operating Temperature 0°C-40°C (32°F-104°F)
    Operating Humidity 10% ~ 90% RH
    Dimensions 16 port: 440 × 189.8 × 44mm (17.3 × 7.5 × 1.7")
    24 port: 440 × 244.8 × 44mm (17.3 × 9.6 × 1.7")
    Weight 2.1kg (4.6lb) 16-port
    2.93kg (6.5lb) 24-port
