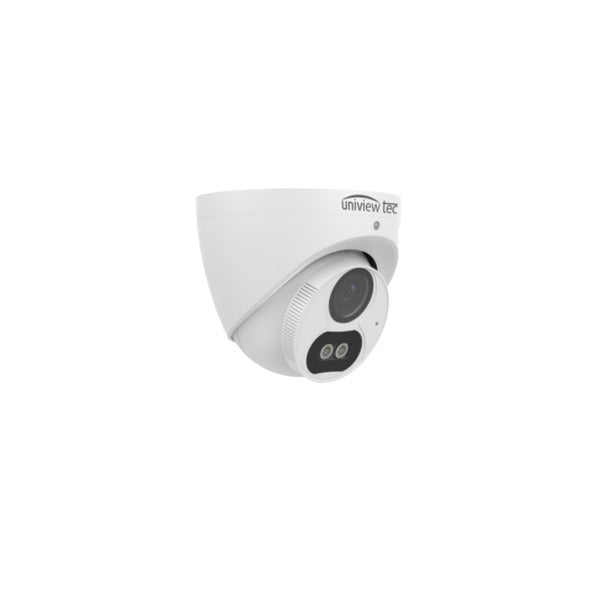

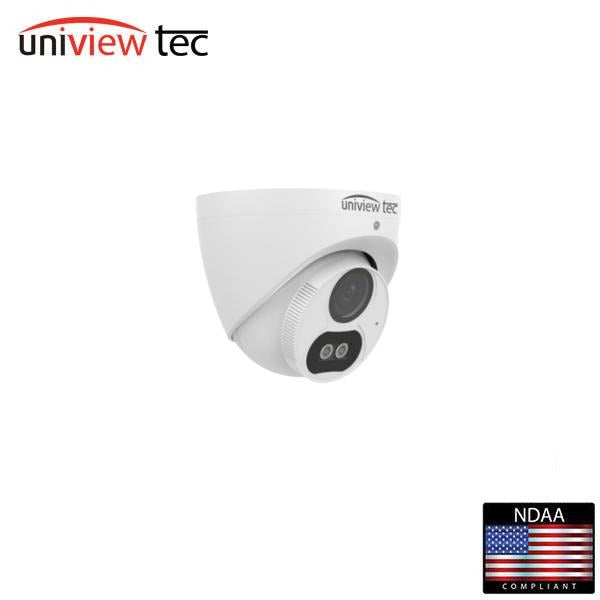

Uniview Tec / UVT / UHDT2C28X / Eyeball Camera / HDCVI / 2MP / 2.8mm Fixed Lens / True Day-Night / Colorhunter / DWDR / 40m IR
Uniview Tec / UVT / UHDT2C28X / Eyeball Camera / HDCVI / 2MP / 2.8mm Fixed Lens / True Day-Night / Colorhunter / DWDR / 40m IR
Couldn't load pickup availability
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesHigh Video Quality with 2MP, 1920 x 1080 ResolutionHigh Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessaryTVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and PerformanceColorHunter Technology allows 24/7 Full-Color Imaging with Dual White Light IlluminatorsTRUE Day/Night and DWDR functionality for all Lighting ConditionsBuilt-in Microphone for High Quality Audio Transmission via Coax Cables2.8mm Fixed Lens, Backlight Compensation and 3D DNR (Digital Noise Reduction)Supports 180° horizontal flip, 180° vertical flip and digital DefogEasy to Operation On Screen Display (OSD) Configuration Menu12VDC Power Options; IP67 Weather Resistant Housing with Optional MountsSupported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
| Sensor | |
|---|---|
| Pixel | 2MP |
| Size | 1/2.9" CMOS |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (white light on) |
| Lens | |
| Focal Length | 2.8mm |
| Angle of View (H x V) | 101.5° x 56.9° |
| IR Illumination | |
| White Light | Two Illuminators; 40M (130ft) |
| Video | |
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
| Frame rate | TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 full-color imaging |
| Digital noise reduction | 2D / 3D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip. |
| Defog | Digital |
| Audio | |
| Microphone | Built-in |
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI / AHD / CVI / CVBS |
| Operating Environment | |
| Temperature | -30? to 60? (-22? to 140?) |
| Humidity | ?95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.12W |
| Mount | Surface mount (default); optional junction box and wall mount available |
| Dimensions (Dia x H) | ?111 x 96mm (4.4 x 3.8”) |
| Material | Metal and Plastic |
| Weight | 356g (0.79lb) |
| Certification | CE, FCC |
