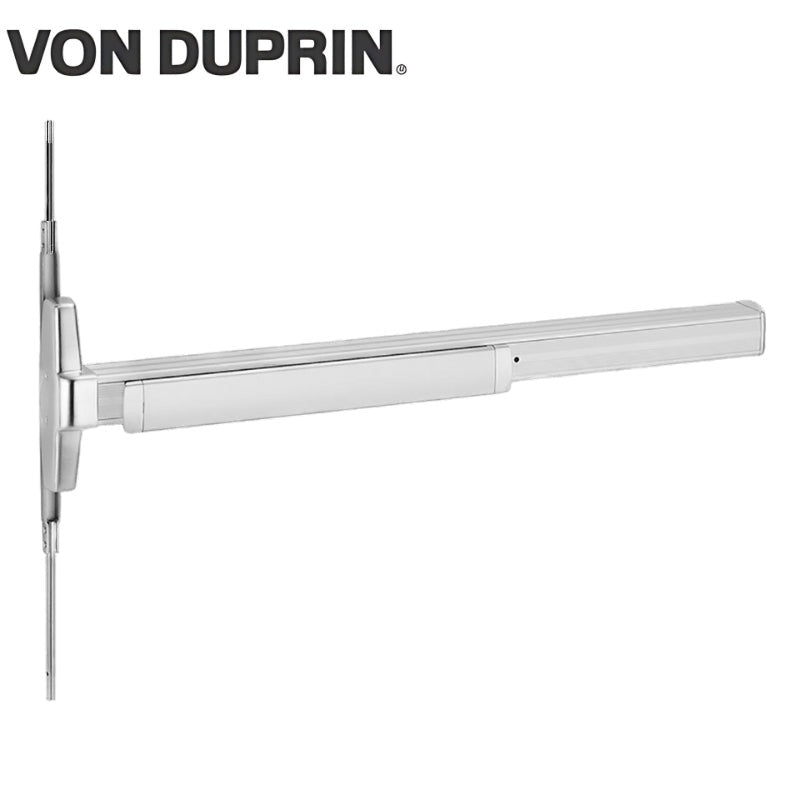

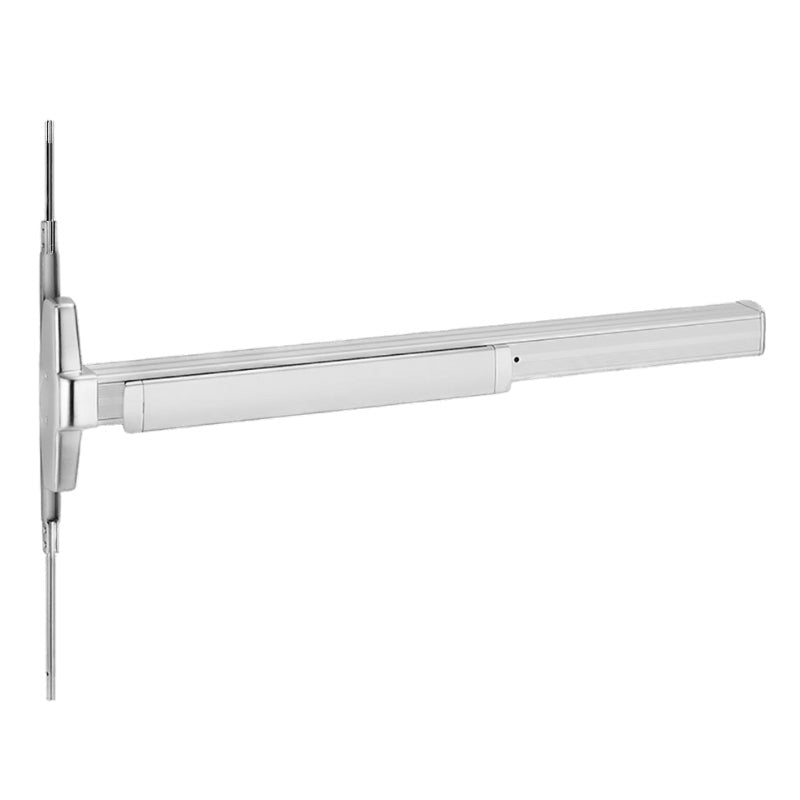

Von Duprin - 3347AEO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - Exit Only - Less Trim - Satin Chrome Finish - 36" - Grade 1

Von Duprin - 3347AEO - Concealed Vertical Rod Exit Device - Narrow Stile Pushpad - Exit Only - Less Trim - Satin Chrome Finish - 36" - Grade 1

$680.70 USD
$2,269.00 USD $680.70 USD
Sale Sold out
Shipping calculated at checkout.

The 33A/35A Series devices are narrow stile heavy-duty push pads commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others.

Architectural design elements differ slightly between the 33A and the 35A. The 35A Series device has a smooth mechanism case, while the 33A Series has a grooved mechanism case.


    Specifications

    Device lengths 3' 2'4" to 3' (660mm to 914 mm) door size
    Device centerline
    from finished floor

    39 13/16" (1006 mm)
    Center case
    dimensions    		 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
    Mechanism case
    dimensions    		 2 1/4" x 2 1/4" (57mm x 57mm)
    Projection push bar

    Pushbar Neutral – 3 13/16" (97 mm)
    Pushbar Depressed – 3 1/16" (78 mm)
    Latch bolt Deadlocking anti-friction top & bottom bolt 5/8" (16mm) throw
    Fasteners Includes 1-3/4" (44mm) – 2 1/4" (57mm) wood & metal doors
    #325 SNB furnished standard for EO (exit-only device)
    Handing Field Reversible
    Finish Satin Chrome Finish
    Dogging feature Hex key dogging standard
    Certifications ANSI/BHMA A156.3 2014 Grade 1 certified
    ANSI/UL 305
    CAN/ULC-S132
