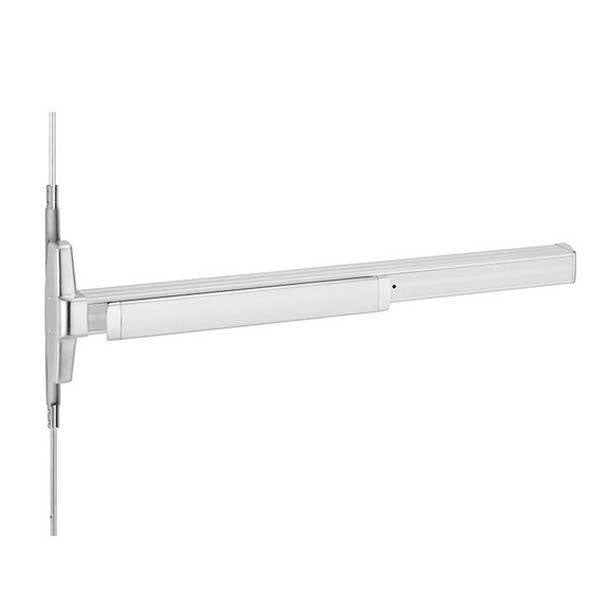

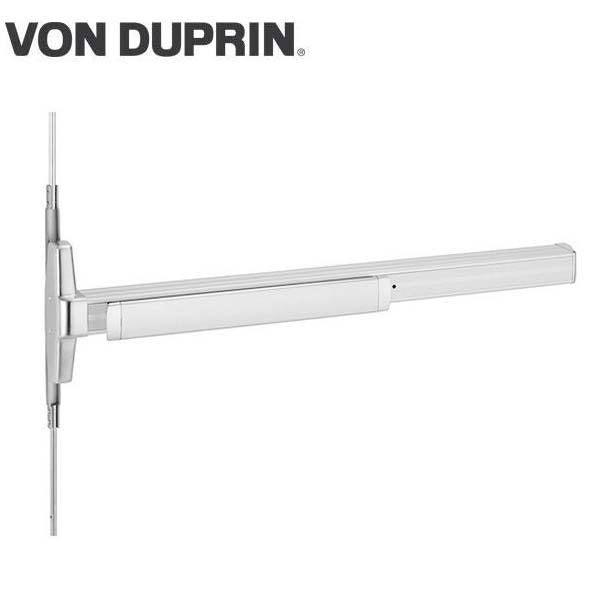

Von Duprin - 3547AEO - Concealed Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - 4 Foot - Grade 1
Von Duprin - 3547AEO - Concealed Vertical Rod Exit Device - Exit Only - No Trim - Satin Chrome Finish - 4 Foot - Grade 1
Regular price
$641.47 USD
Regular price
$2,565.89 USD
Sale price
$641.47 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The 3547A Concealed Vertical Rod Exit Device is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. The 3547A has a smooth mechanism case. The concealed vertical rod device is non-handed except when an optional signal switch is used
Specifications
| Trim | No Trim - Exit Only |
| Device lengths | 2'10" to 4' |
| Device centerline from finished floor |
39 13/16" (1006mm) |
| Center case dimensions |
8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm) |
| Mechanism case dimensions |
2 1/4" x 2 1/4" (57mm x 57mm) |
| Projection push bar |
Pushbar neutral – 3 13/16" (97 mm) |
| Latch bolt | Deadlocking anti-friction top & bottom bolt 5/8" (16mm) throw |
| Door undercut | 1/4" (7mm) |
| Top & bottom latch | 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm) |
| Vertical rods | Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) |
| Fasteners | Includes 1 3/4" (44mm) – 2 1/4" (57mm) for wood & metal doors |
| Finish | 626 Satin Chrome |
| Dogging feature | Cylinder dogging |
| Strikes | Top – 388 – Unfinished, bottom – 385A – Unfinished |
| Fire Rated | No |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
