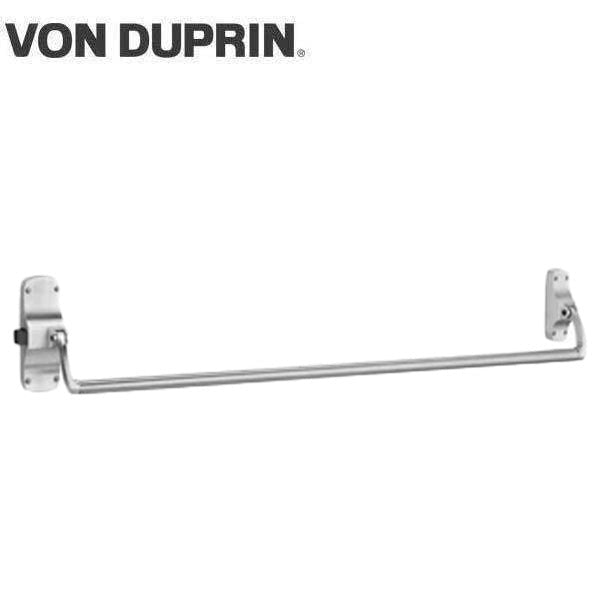

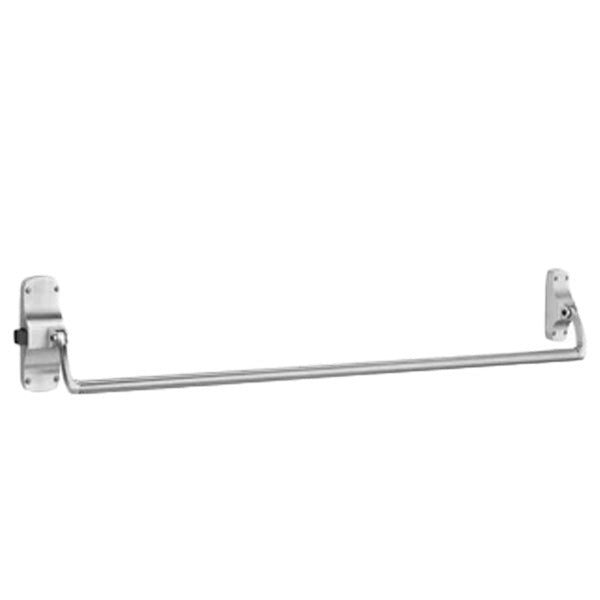

Von Duprin - 88L - Rim Exit Bar - Wide Stile Crossbar - Classroom Function - Fire-Rated Device - 48" - Less Trim - Left Hand Reverse - 625/US26 Bright Chrome -

The 88 Series is a classic crossbar exit device. A standard wide stile device, the 88 Series is designed for applications where a crossbar is preferred.

Features:

• Device Functions: Ships EO, DT, NL, TP, L, K
• Crossbar Length: 42' field sizeable Device centerline 39 13/16"
• Crossbar centerline to finished floor: 36 13/16" at center
• Lock Stile case: 8-1/4" x 2-3/4" x 15/16" (210mm x 70mm x 24mm)
• Hinge Stile case: 6" x 1-3/4" x 15/16" (152mm x 44mm x 24mm)
• Crossbar tubing: 1" (25mm) outside diameter
• Projection: Neutral - 4-3/4" (121mm), Depressed - 4" (102mm)
• Latchbolt: 3/4" (19mm), throw
• Fasteners: All necessary mounting fasteners are included

Specifications:

Downloads:

• Catalog
• Installation Instructions
