Von Duprin - 9827L - Surface Mounted Vertical Rod Exit Device - 07 Lever Night Latch - Satin Nickel - Right Hand - 3 Foot
Von Duprin - 9827L - Surface Mounted Vertical Rod Exit Device - 07 Lever Night Latch - Satin Nickel - Right Hand - 3 Foot
Regular price
$554.33 USD
Regular price
$1,847.76 USD
Sale price
$554.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

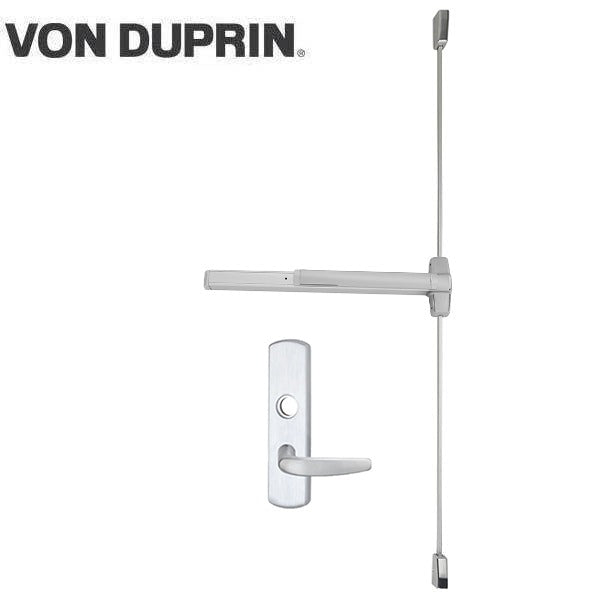

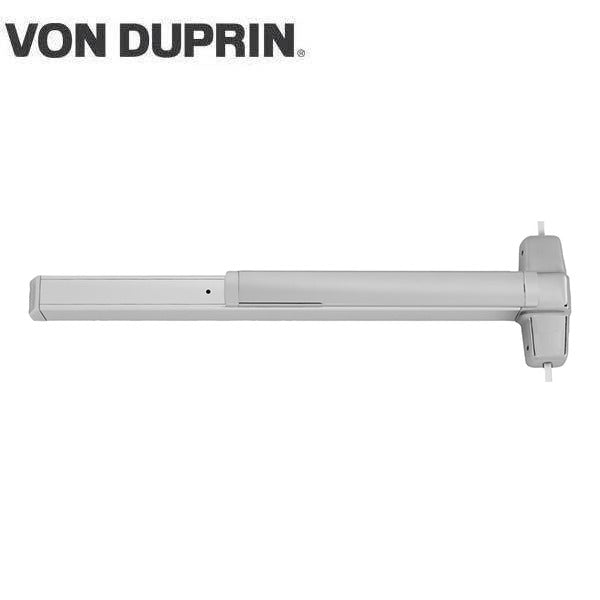

9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case. The surface vertical rod device is non-handed.
More Information Below
Specifications

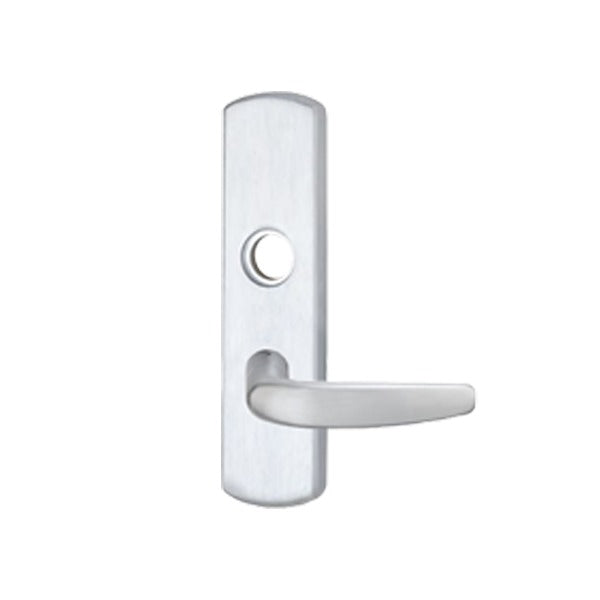

| Trim | 996L-NL Night Latch |
| Handing | Right Hand Reverse |
| Device functions | Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device |
| Device length | 3 feet |
| Center case dimensions | 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions | 2 1⁄4" x 2 1⁄4" (57mm x 57mm) |
| Projection push bar | Pushbar neutral – 3 13⁄16" (97mm) Pushbar depressed – 3 1⁄16" (78mm) |
| Latch bolt | Deadlocking anti-friction top and bottom bolt, 5⁄8" (16mm) throw |
| Fasteners | Includes screw pack for 1 3⁄4" (44mm) to 2 1⁄4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. |
| Dogging feature | Hex key dogging |

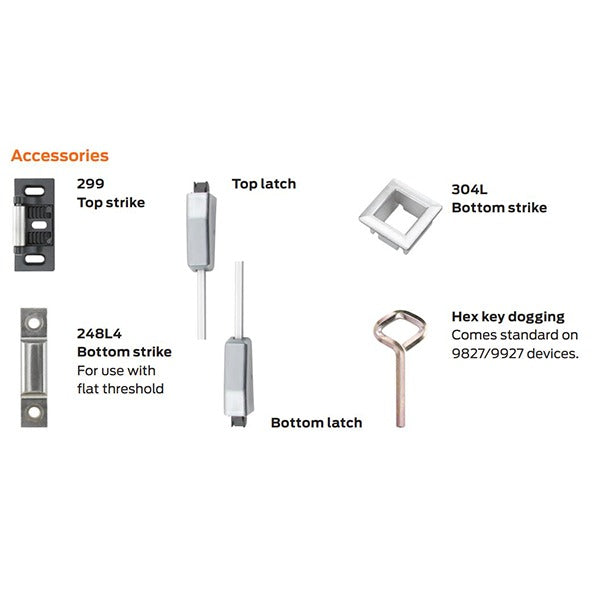

| Strikes | Top – 299 – Dull black Bottom – 248L4 and 304L – Unfinished |
| Fire Rated | Not fire rated |
| Certifications | ANSI/BHMA A156.3 2014, Grade 1 |
