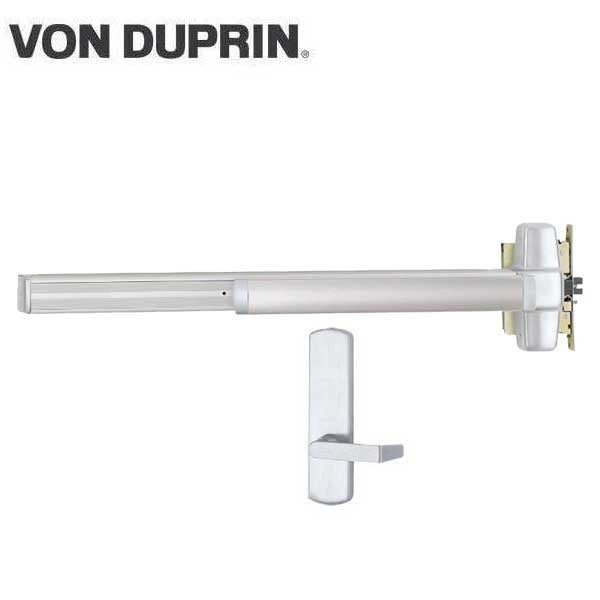

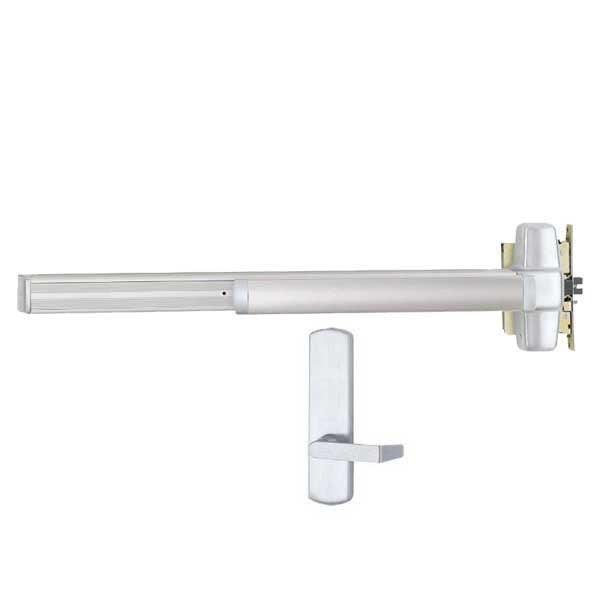

Von Duprin - 9875 - Mortise Lock Exit Device - Blank Escutcheon - 3' Long - Less Core - Satin Chrome - Grade 1
Von Duprin - 9875 - Mortise Lock Exit Device - Blank Escutcheon - 3' Long - Less Core - Satin Chrome - Grade 1
Regular price
$296.03 USD
Regular price
$2,440.15 USD
Sale price
$296.03 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
9875 Mortise lock device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4 3⁄4" (121mm). The 9875 device has a smooth mechanism case. The mortise lock device is non-handed.
Features:
- No cylinder
- The breadth of available options allows for tailoring to any facility’s needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options available
- Retrofit kits available to keep up with changing technology
Specifications:
| Function | Blank Escutcheon - Always operable, no cylinder |
| Device Length | 3' Length. fits 2'4" to 3' Door size |
| Door Thickness | 1-3/4" |
| Device centerline from finished floor | 39 13⁄16" |
| Center case | 8" x 2 3⁄4" x2 3⁄8" |
| Mechanism case | 2 1⁄4" x 2 1⁄4" |
| Projection | Pushbar neutral – 3 13⁄16" Pushbar depressed – 3 1⁄16" |
| Handing | Right Hand Reverse, field reversible |
| Finish | US26D (626) Satin Chrome |
| Fasteners and sex bolts | Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors. |
| Certifications | ANSI/BHMA A156.3 2014, Grade 1 |
Downloads:
