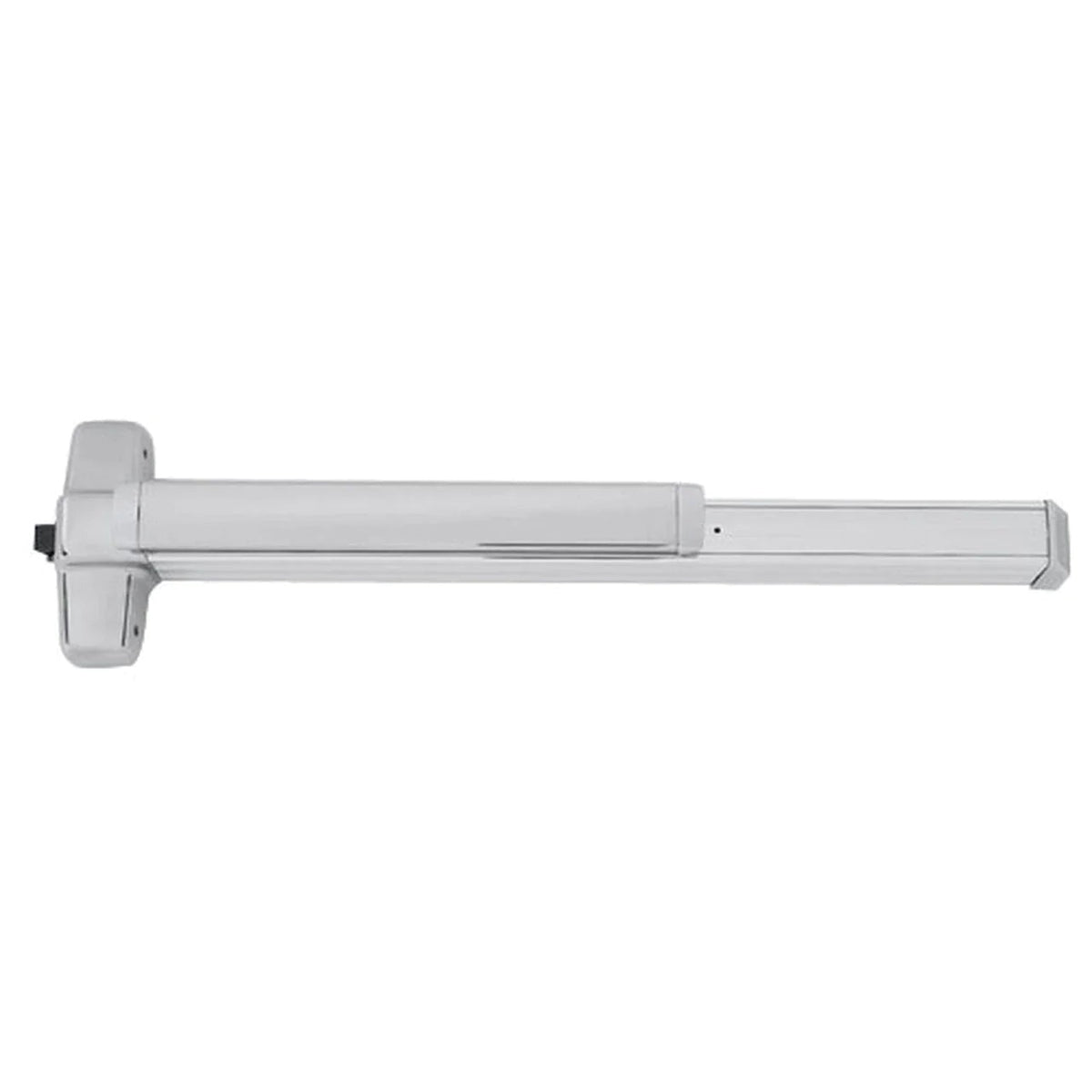

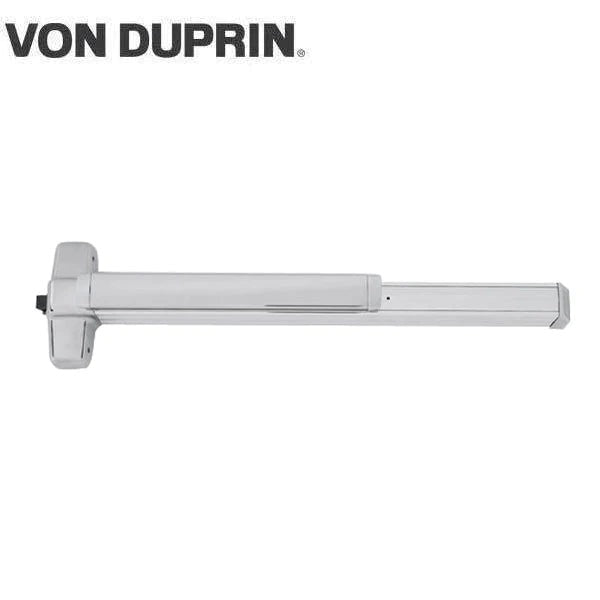

Von Duprin - 98EO - Panic Rim Exit Device - 3ft Length - Exit Only - Field Reversible - Aluminum Anodized - Grade 1
Von Duprin - 98EO - Panic Rim Exit Device - 3ft Length - Exit Only - Field Reversible - Aluminum Anodized - Grade 1
Regular price
$359.61 USD
Regular price
$1,438.45 USD
Sale price
$359.61 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
98 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 98 Series device has a smooth mechanism case. It is specifically designed for use in areas where frequent abusive treatment can be expected.
Specifications
| Trim | No Trim - Exit Only |
| Device functions | EO - Exit Only |
| Device lengths | (3' ) 2'4' to 3' (711mm to 914mm) Door size |
| Device centerline from finished floor |
39 13⁄16" (1011mm) 39 11⁄16" (1008mm) with mullion |
| Center case dimensions |
8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) |
| Mechanism case dimensions |
2 1⁄4" x 2 1⁄4" (57mm x 57mm) |
| Projection push bar | Pushbar neutral – 3 13/16" (97mm) |
| Latch bolt | Deadlocking, 3/4" (19 mm) throw |
| Fasteners | Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal screws |
| Handing | Field Reversible |
| Finish | 626 Satin Chrome |
| Dogging feature | Hex key dogging standard |
| Strikes | 299 – Dull black |
| Fire Rated | No |
| Certifications | ANSI A156.3 – 2008 Grade 1. |
