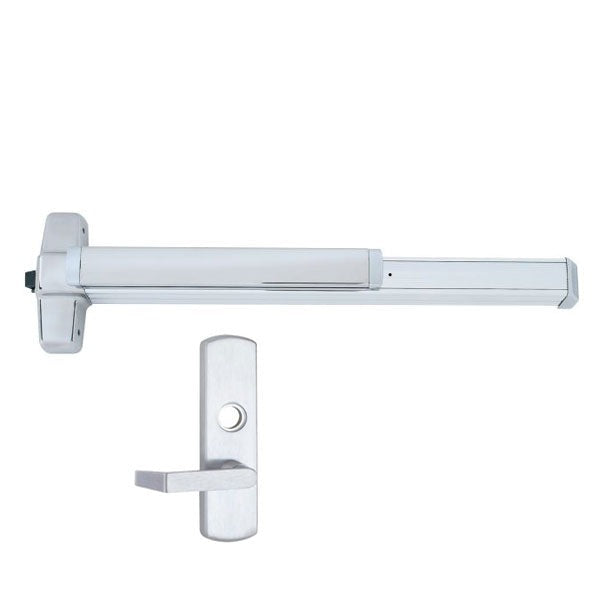

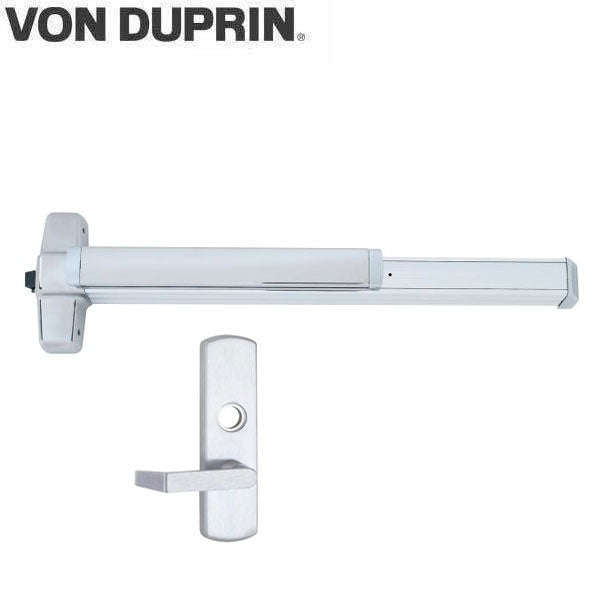

Von Duprin - 98L - Mortise Lock Exit Device - 06 Lever - Night Latch - 3' Long - LHR - Satin Chrome - Grade 1
Von Duprin - 98L - Mortise Lock Exit Device - 06 Lever - Night Latch - 3' Long - LHR - Satin Chrome - Grade 1
Regular price
$375.09 USD
Regular price
$1,250.30 USD
Sale price
$375.09 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
98L exit devices for all types of single and double doors with mullion, UL listed for fire exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 98 device has a smooth mechanism case. It is specifically designed for use in areas where frequent abusive treatment can be expected.
Features:
- The breadth of available options allows for tailoring to any facility’s needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options available
- Retrofit kits available to keep up with changing technology
- Used for Rim and Vertical devices
Specifications:
| Function | Night Latch - Key retracts latch bolt |
| Device Length | 3' Length. fits 2'4" to 3' Door size |
| Door Thickness | 1-3/4" |
| Device centerline from finished floor | 39 13⁄16" |
| Center case | 8" x 2 3⁄4" x2 3⁄8" |
| Mechanism case | 2 1⁄4" x 2 1⁄4" |
| Lever | 06 Lever (Standard) |
| Trim | 996L-NL - Night latch - Key retracts latch bolt |
| Projection | Pushbar neutral – 3 13⁄16" Pushbar depressed – 3 1⁄16" |
| Dogging | Comes standard |
| Handing | LHR |
| Finish | US26D - Satin Chrome |
| Fasteners and sex bolts | Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors. |
| Strikes | 299 – Dull black |
| Certifications | ANSI/BHMA A156.3 2014, Grade 1 |
Downloads:
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
