Von Duprin

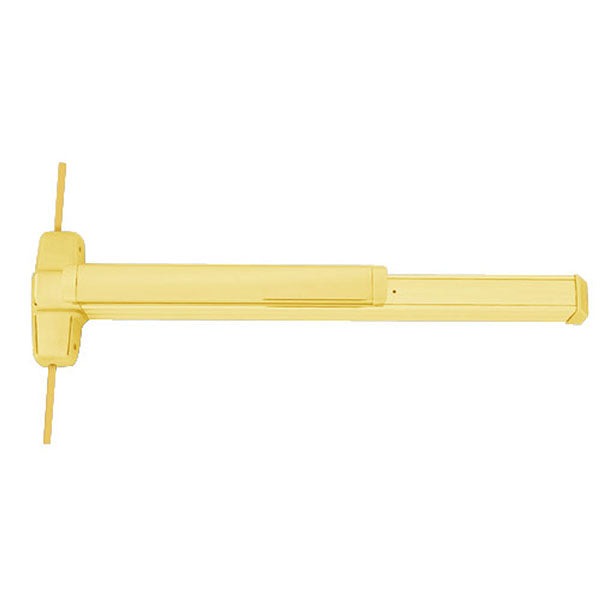

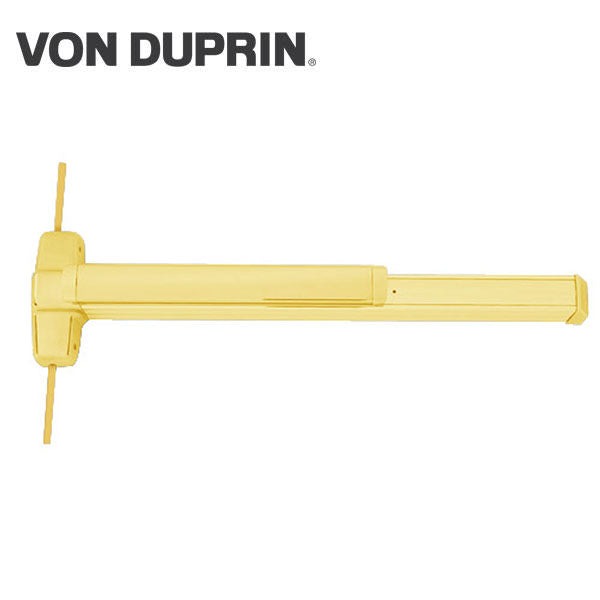

Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - Fire Rated - No Trim - Hex Key Dogging - Bright Brass - Field Reversible - 3 Foot

Von Duprin - 9927EO - Surface Mounted Vertical Rod Exit Device - Exit Only - Fire Rated - No Trim - Hex Key Dogging - Bright Brass - Field Reversible - 3 Foot

$548.57 USD
$2,194.27 USD $548.57 USD
Sale Sold out
Shipping calculated at checkout.

9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 9927 device has a grooved case It is specifically designed for use in areas where frequent abusive treatment can be expected.

Features

  • Uniquely designed center case
  • Vertical rods designed to reinforce the strength of the door
  • Reinforced top and bottom latch housing with strengthening strap
  • Stamped end cap mounting bracket
  • Top soffit latch with reinforced ratchet release bracket
  • Cast latch covers
  • Stronger latch mounting screws
  • Thru-bolted attachment points

    Specifications

    Trim No Trim - Exit Only
    Device functions Device ships EO; Field selectable;
    For TP, K or L remove NL drive screw from device
    Device lengths 3'
    Device centerline
    from finished floor    		 39 5⁄8" (1006 mm)
    Door Height
    		 84"
    Mechanism case
    dimensions    		 2-1/4" x 2-1/4" (57mm x 57mm)
    Projection push bar

    Pushbar neutral – 3 13⁄16" (97mm)
    Pushbar depressed – 3 1⁄16" (78mm)
    Door undercut 1⁄4" (7mm) recommended
    Top and bottom
    latch case    		 4 1⁄2" x 2 1⁄8" x 1 1⁄2" (114mm x 54mm x 38mm)
    Vertical rods 1⁄2" square tubing, standard rods accommodate 7' (2134mm)
    doors. Top rod length: 34 15⁄16" (887mm);
    Bottom rod length: 31 1⁄2" (794mm).
    Latch bolt Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
    Fasteners Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick wood and metal doors and 325 SNB for top and bottom latch
    Dogging feature Hex Key dogging
    Finish

    605/US3 – Bright Brass
    Fire Rated UL 10C
    Certifications ANSI A156.3 – 2008 Grade 1.

    Downloads

    Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
