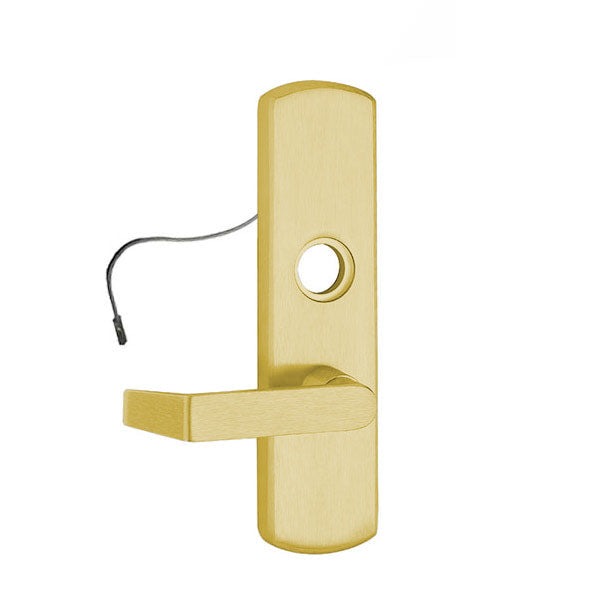

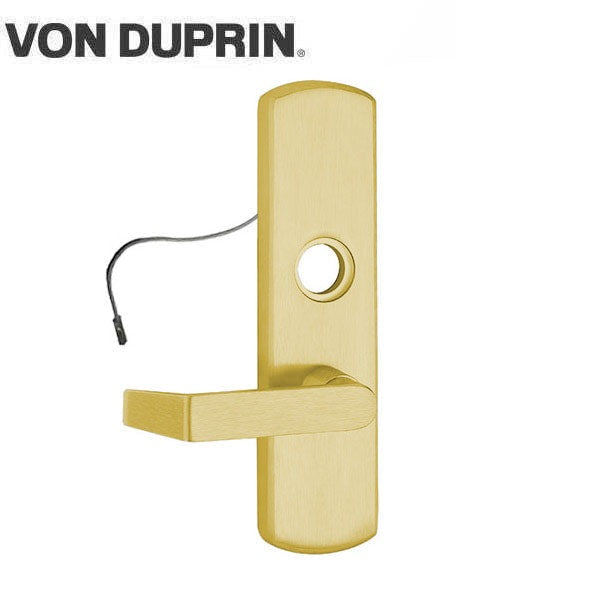

Von Duprin - E996L - 98/99 Series Exit Devices - Electrical Lever Trim - Mortise Prep - Bright Brass - Right Hand Reverse
Von Duprin - E996L - 98/99 Series Exit Devices - Electrical Lever Trim - Mortise Prep - Bright Brass - Right Hand Reverse
Regular price
$319.45 USD
Regular price
$1,064.85 USD
Sale price
$319.45 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E996L Electrified Breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented Breakaway trim design. The 24VDC solenoid can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim. When electrically unlocked the unit operates as a normal lever trim. When electrically locked, the lever feels locked, but when more than 35 pounds of torque pressure is applied, the Breakaway lever feature engages.
- Device Type: For Mortise Devices
Specifications
| Trim | Electronic Lever Trim |
| Device functions | Lever |
| Function description | Key locks and unlocks |
| ANSI function | 08 |
| Device compatibility | 98/99 Series Trim |
| Escutcheon plate size |
2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm) |
| Projection | 2 7⁄8" (73mm) |
| Handing | Right Handed/reversible |
| Power Input | 24 VDC |
| Cylinder type | 1 1⁄4" Mortise |
