Jonard Tools

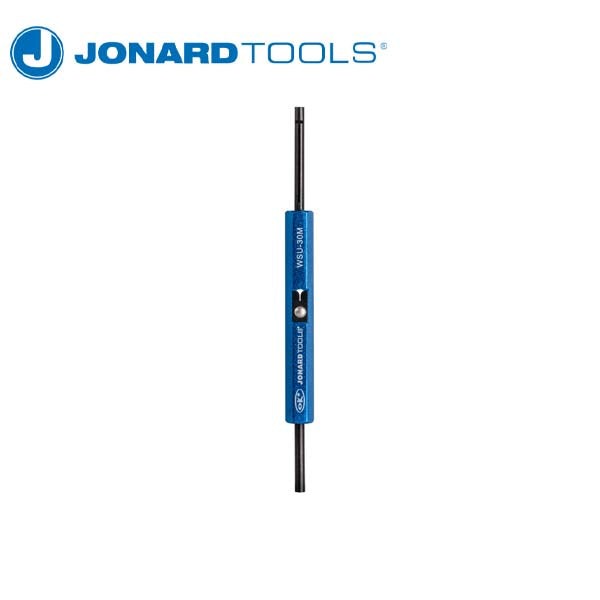

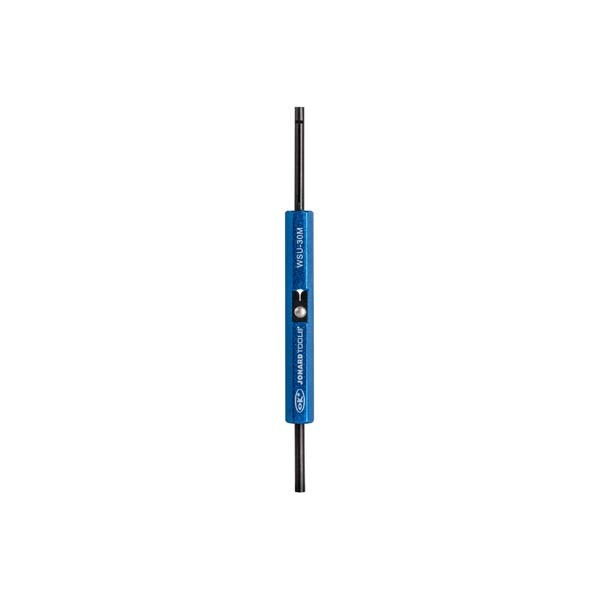

Wrap-Strip-Unwrap Tool - 30 AWG - Modified Wrap Type
Wrap-Strip-Unwrap Tool - 30 AWG - Modified Wrap Type
Regular price
$14.09 USD
Regular price
$56.34 USD
Sale price
$14.09 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Designed to wrap, strip, and/or unwrap 30 AWG (0.25 mm) wire, this tool is perfect for quick wire service and repair applications. This tool features the following:
- For use on 0.025" (0.63 mm) square terminals on 0.100" (2.54 mm) center to center of the pins
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Patented built-in wire stripping blades make wire stripping quick and easy in such a compact tool
- Modified wrap provides 1.5 to 2 turns of insulation when wire wrapping
- Plastic handle for reduced weight and comfortable to carry
Specifications
| Wrap Type |
Modified |
|---|---|
| Wire Gauge |
30 AWG (0.25 mm) |
| Maximum Insulation Diameter |
0.021" (0.53 mm) |
| Terminal Hole Diameter |
0.036" (0.91 mm) |
| Terminal Hole Depth |
1.50" (38.1 mm) |
| Outside Diameter |
0.125" (3.2 mm) |
| Wrap Post Size |
0.025" (0.63 mm) |
| Dimensions | 4.5 in x 0.36 in x 0.34 in (11.44 cm x 0.9 cm x 0.86 cm) |
| Weight | 0.03 lb (11.804 g) |
| UPC # | 811490011335 |
