Xhorse - Condor XC-003 Mechanical Key Cutting Machine
Xhorse - Condor XC-003 Mechanical Key Cutting Machine
Regular price
$315.00 USD
Regular price
$1,260.00 USD
Sale price
$315.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Please Note: This item is a Pre-order and will be available soon

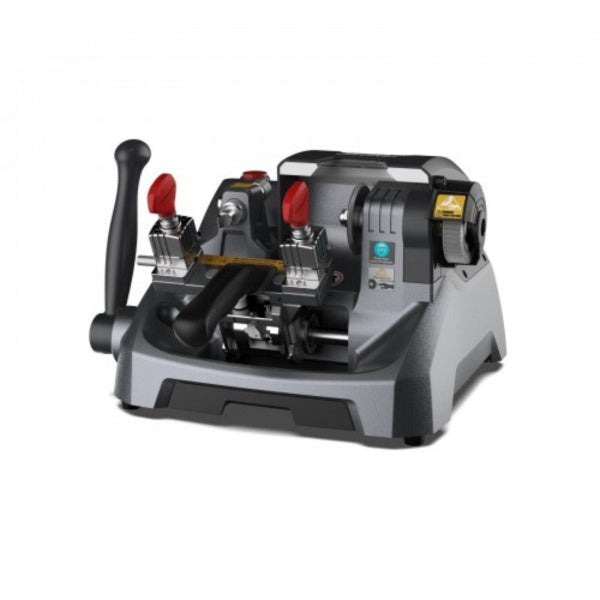

The Xhorse Condor XC‑003 is a precision-engineered mechanical key-cutting machine built for professional locksmiths and workshops. Crafted from sturdy cast aluminum and milled on German DMG CNC equipment, it ensures accurate, repeatable performance. Ergonomically designed for continuous use, it offers both manual and continuous-cutting modes, plus four-sided clamping and integrated LED lighting.
| Feature | Specification |
|---|---|
| Model | XHS‑XC0300EN / XC‑003 |
| Body Material | Aluminum (integral casting) |
| Power | 200 W |
| Input Voltage | 80–240 VAC (100–240 V AC depending on source) |
| Input Frequency | 50–60 Hz (or 47–63 Hz) |
| Motor Speed | 1800 rpm rotary cutter |
| Motor Torque | ~1.06 Nm |
| Clamp Width | 112 mm (accommodates plastic head keys) |
| Dimensions | ~389 × 362 × 266 mm (may vary) |
| Weight (Net) | 18–29 kg |
| Operating Temperature | 0 °C–50 °C |
| Protection Features | Self-locking table, power-switch safeguards, emergency-stop handle |
| Excelling Features | Four‑sided clamp, ergonomic handle, LED light, blower brush |
| Cutter Material | Tungsten-steel custom cutter |
| Guide Accuracy | 0.01 mm precision adjustment |
| Accessories | Includes polishing brush; machine only (no extras) |
