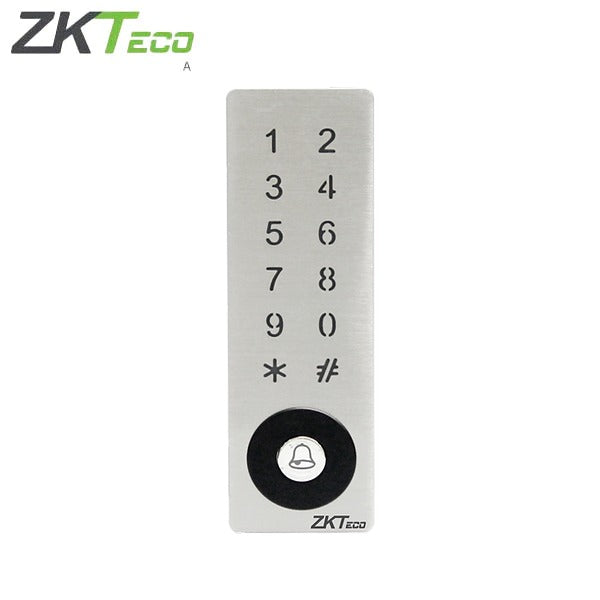

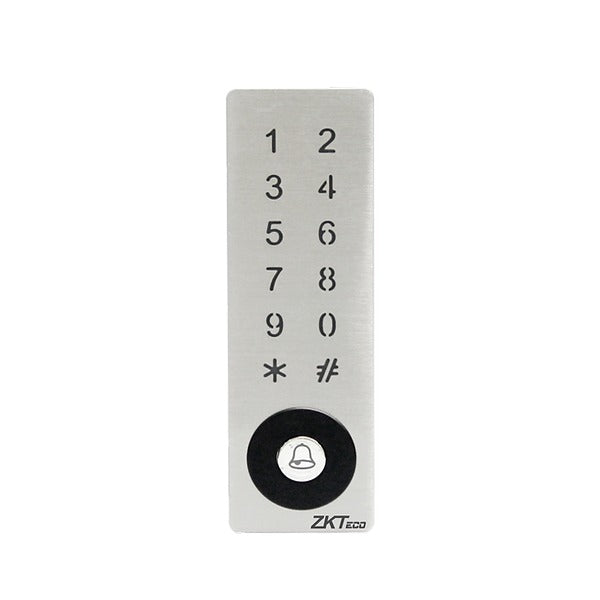

ZKTeco - SMK-V - Standalone RFID Reader - Outdoor - Vandal Resistant - IP65 - Back-lit Keypad - Metallic

ZKTeco - SMK-V - Standalone RFID Reader - Outdoor - Vandal Resistant - IP65 - Back-lit Keypad - Metallic

$53.05 USD
$174.00 USD $53.05 USD
Sale Sold out
Shipping calculated at checkout.

The SMK-V has a built-in 12V relay contacts which can be connected directly to either an electric strike or magnetic door lock. For the highest level of security and programming flexibility, SMK-V and SMK-H also have a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers). The SMK-V comes standard with a built-in ZKAccess 125 KHz 26-bit RFID card reader.

    Features:

    • IP65-rated vandal-proof metallic enclosure
    • Standard ZK 125 kHz 26-bit card reader
    • Relay outputs for electric lock and alarm
    • Auxiliary inputs for door status sensor and exit switch
    • Stores up to 1,000 cards
    • Wiegand-Out port can connect SMK-V and SMK-H to most all 3rd party (and ZKTeco USA) access control panels
    • Built-in speakers & LEDs provide users both audio & visual feedback

    Specifications:


    Keypad Blue black-lit, numeric keys 0-9, functional keys * # , bell
    LED Indicator Blue & Red
    ID Card Capacity 1,000 cards
    PIN Code Capacity 10 codes
    Standard Functions Single & dual-factor ID card & password authentication
    Access Control Hardware Interface Connects 3rd party electric strike or magnetic lock, door sensor, exit button, alarm
    Wiegand Interface Wiegand-out port
    Power Supply 12V DC, 450mA
    Operating Temperature - 4 F to 122 F
    Operating Humidity 20% to 80%
    Dimensions (HxWxD) 5.35x2.2x0.87 in;
